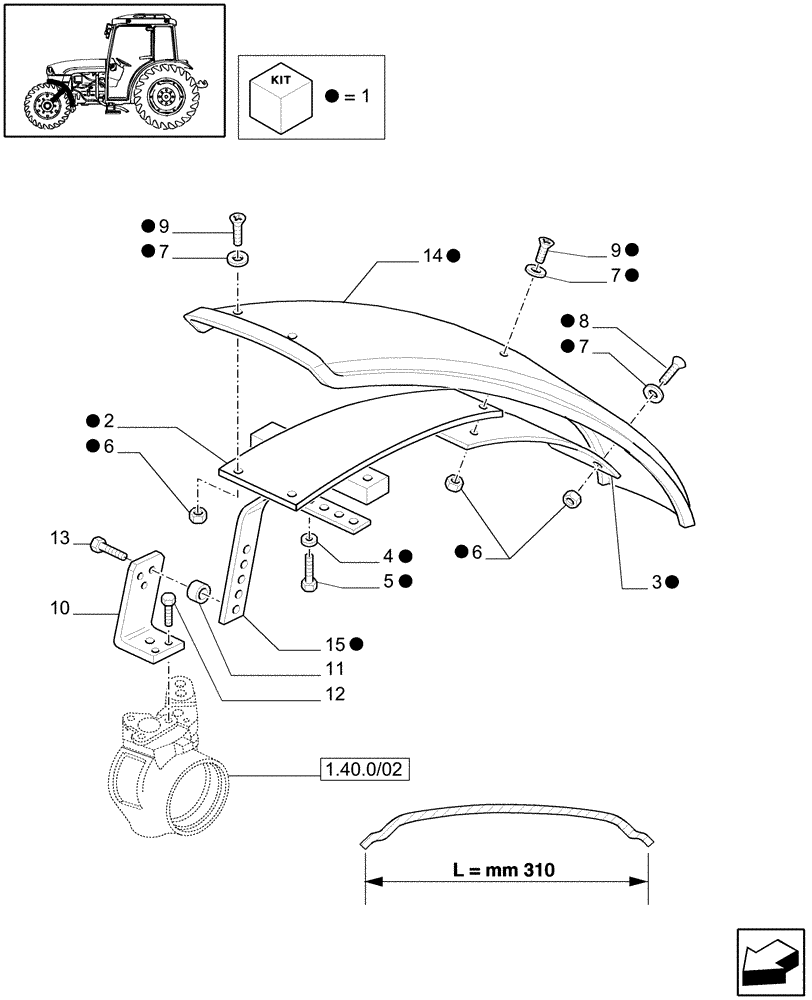

Запчасти Case IH JX1085C (710168010) - (DIA KIT) FRONT FENDERS F/FRONT AXLE L/BRAKES W/NARROW COVER (18) - VARIATIONS

1

5186949

FRONT FENDER

ASSY., RH

1шт.

1

5186950

FRONT FENDER

ASSY., LH

1шт.

2

5179697

FRAME

RH

1шт.

2

5179698

FRAME

LH

1шт.

3

5179701

REINFORCEMENT

LH

1шт.

3

5179705

REINFORCEMENT

RH

1шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

5

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

6

12574511

LOCK NUT,M10 x 1.25, Cl 8

8шт.

7

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

8шт.

8

14782514

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 20mm, Cl 5.8

2шт.

9

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

6шт.

10

5185292

SUPPORT

2шт.

11

5166193

SPACER,13mm ID x 40mm OD x 28mm L

13x40x28

4шт.

12

14233931

LOCK BOLT,Self Lkg, M10 x 1.25 x 45mm

M10x1.25x45

6шт.

13

14275121

SCREW,M12 x 1.25 x 60mm

M12x1.25x60

4шт.

14

5137714

COVER ASSY

2шт.

15

5186928

PILLAR

2шт.
