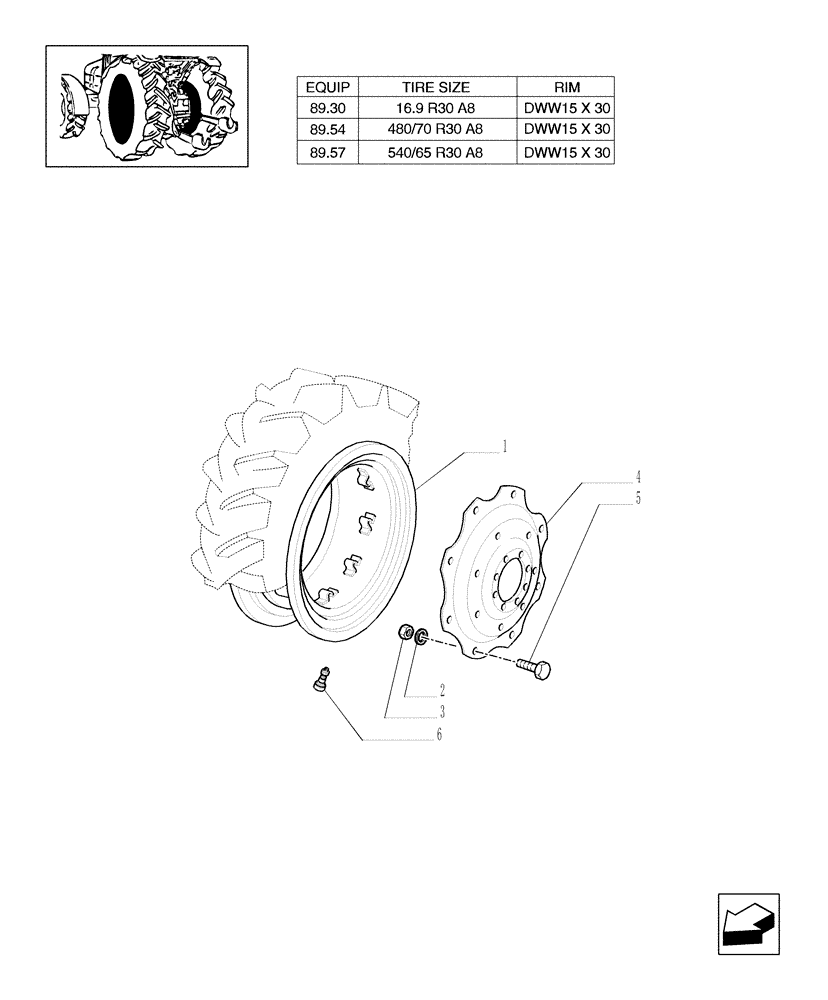

Запчасти Case IH JX1085C (83.00[04]) - DRIVE WHEELS (11) - WHEELS/TRACKS

1

47128195

RIM,DWW15Lx30, 8 Bolts, CASE Silver

DWW15 x 30

2шт.

1

5195898

RIM,DWW15Lx30, 8 Bolts, NH White

DWW15 x 30

2шт.

2

5122064

WASHER,16.6mm ID x 33mm OD x 4mm Thk

M16.6 x 33 x 3.5

16шт.

3

10790524

NUT,M16 x 1.5

16шт.

4

47128174

WHEEL DISC,616mm DIA, 8 Bolts, CASE Silver

2шт.

4

5195896

WHEEL DISC,616mm DIA, 8 Bolts, NH White

2шт.

5

5112385

SCREW,Wheel, M16 x 1.5 x 78.5

16шт.

6

85700224

VALVE STEM

2шт.

6

87323751

PNEUMATIC VALVE

2шт.
