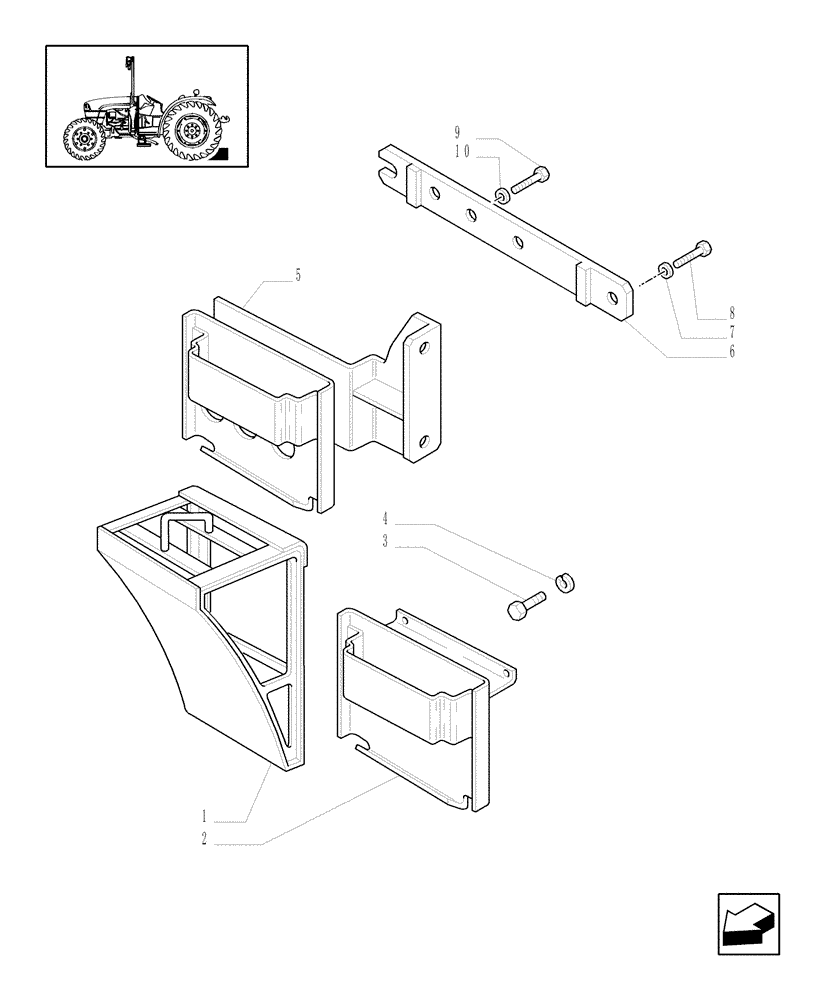

Запчасти Case IH JX1085C (1.92.991) - (VAR.863-864) WHEEL CHOCK (10) - OPERATORS PLATFORM/CAB

1

5112736

WHEEL CHOCK

1шт.

2

5184417

SUPPORT

Single

1шт.

3

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

5

87351163

SUPPORT

VAR.864, Start Serial: HJH045565

1шт.

6

87351291

BRACKET

VAR.864, Start Serial: HJH045565

1шт.

7

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

VAR.864, Start Serial: HJH045565

1шт.

8

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

VAR.864, Start Serial: HJH045565

1шт.

9

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

VAR.864, Start Serial: HJH045565

1шт.

10

11198174

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

VAR.864, Start Serial: HJH045565

1шт.
