Запчасти Case IH JX1085C (1.92.99/01) - (VAR.760) EQUIP. FOR LH TRAFFIC (HALOGEN) - PLATE-HOLDER (10) - OPERATORS PLATFORM/CAB

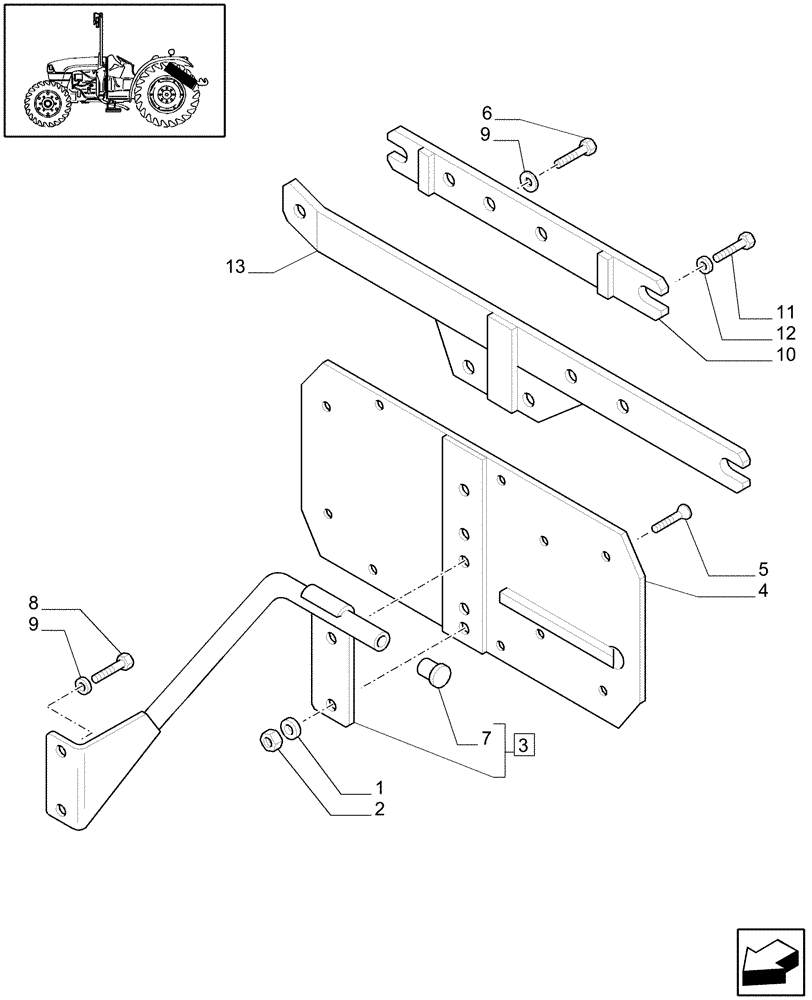

Схема запчастей Case IH JX1085C - (1.92.99/01) - (VAR.760) EQUIP. FOR LH TRAFFIC (HALOGEN) - PLATE-HOLDER (10) - OPERATORS PLATFORM/CAB
9
10
7
8
2
9
13
11
3
1
4
5
12
6

Артикул

Название

Примечание

Количество

1

14447021

WASHER,5.5mm ID x 15mm OD x 1mm Thk

2шт.

2

12574215

NUT,M6 x 1, Cl 8

2шт.

3

47133039

SUPPORT

RH, W/Cab

1шт.

3

47132946

SUPPORT

RH, L/Cab

1шт.

4

47133049

PLATE

1шт.

5

14441424

SCREW,Hdls Hex Skt, M6 x 20mm, Cl 8.8, Flat Pt

M6x20

2шт.

6

16043834

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

w/Cab

1шт.

6

16043637

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

L/Cab

4шт.

7

5176369

PLUG,21.2mm OD

1шт.

8

16043430

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

9

11198179

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

1шт.

10

47133025

SUPPORT

RH, W/Cab

1шт.

11

15980524

BOLT,Hex, M16 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

12

11194274

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

13

47133023

BRACKET

RH, L/Cab

1шт.

Выбрано товаров: 15
