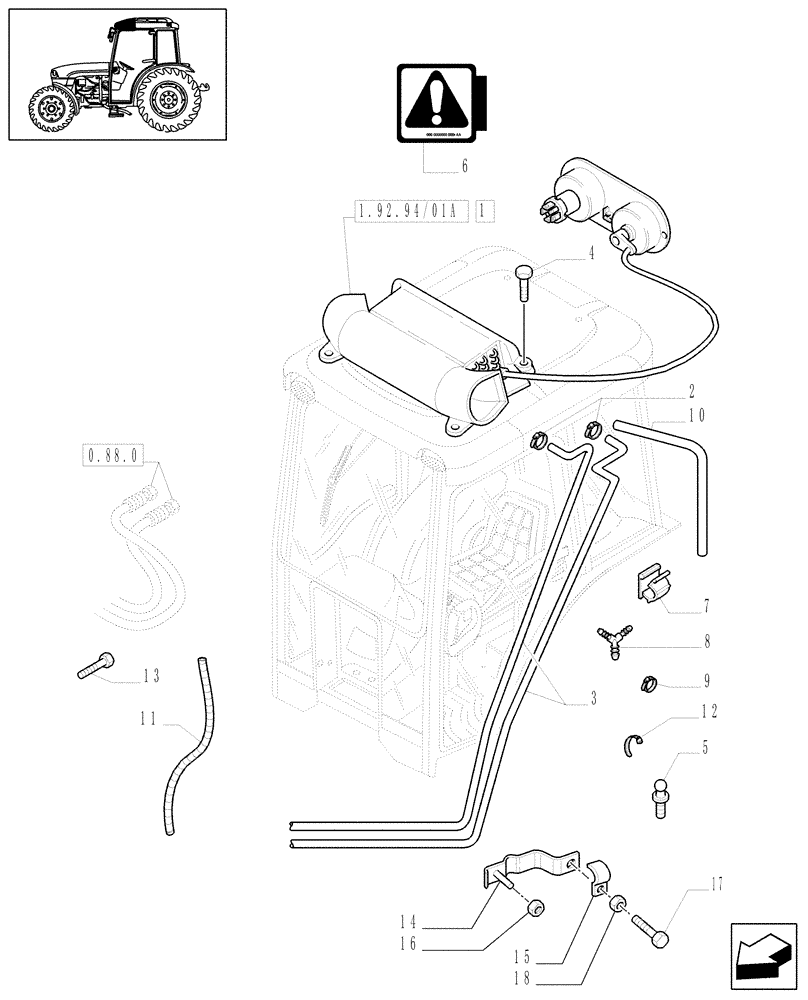

Запчасти Case IH JX1085C (1.92.94/01) - (VAR.577-608) AIR CONDITIONING-CONDITIONER (10) - OPERATORS PLATFORM/CAB

1

47128550

AIR CONDITIONER

ASSY, VAR.608

1шт.

1

47125122

AIR CONDITIONER

ASSY, VAR.577

1шт.

2

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

D=16-25

4шт.

3

87310981

RIGID TUBE

Return

1шт.

3

87310980

FLEXIBLE HOSE

Delivery

1шт.

4

16043924

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

1шт.

5

15152011

BALL STUD

BALL PIN

6шт.

6

83946774

DECAL

WARNING, Hazard

1шт.

7

5182865

CLIP

Drain

1шт.

8

5186511

HYD CONNECTOR

Drain

1шт.

9

10187090

HOSE CLAMP,16mm - 18mm

D=16-18

2шт.

9

10186890

HOSE CLAMP,M14-16, Worm

1шт.

10

19053382

HOSE,10.00 mm

D=10x15

1шт.

11

5186461

TUBE

Wrinkled. 300mm L

1шт.

12

14560287

CABLE TIE,207.00mm L

COLLAR

2шт.

13

13278214

SCREW,M6 x 18mm

M6x18

10шт.

13

18770114

SCREW

M6x16

4шт.

14

87390977

BRACKET

, Start Serial: HJH077006

1шт.

15

44908518

CLAMP

, Start Serial: HJH077006

1шт.

16

12574221

NUT,M6 x 1, Cl 10

, Start Serial: HJH077006

1шт.

17

10902011

SCREW

, Start Serial: HJH077006

1шт.

18

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

, Start Serial: HJH077006

1шт.
