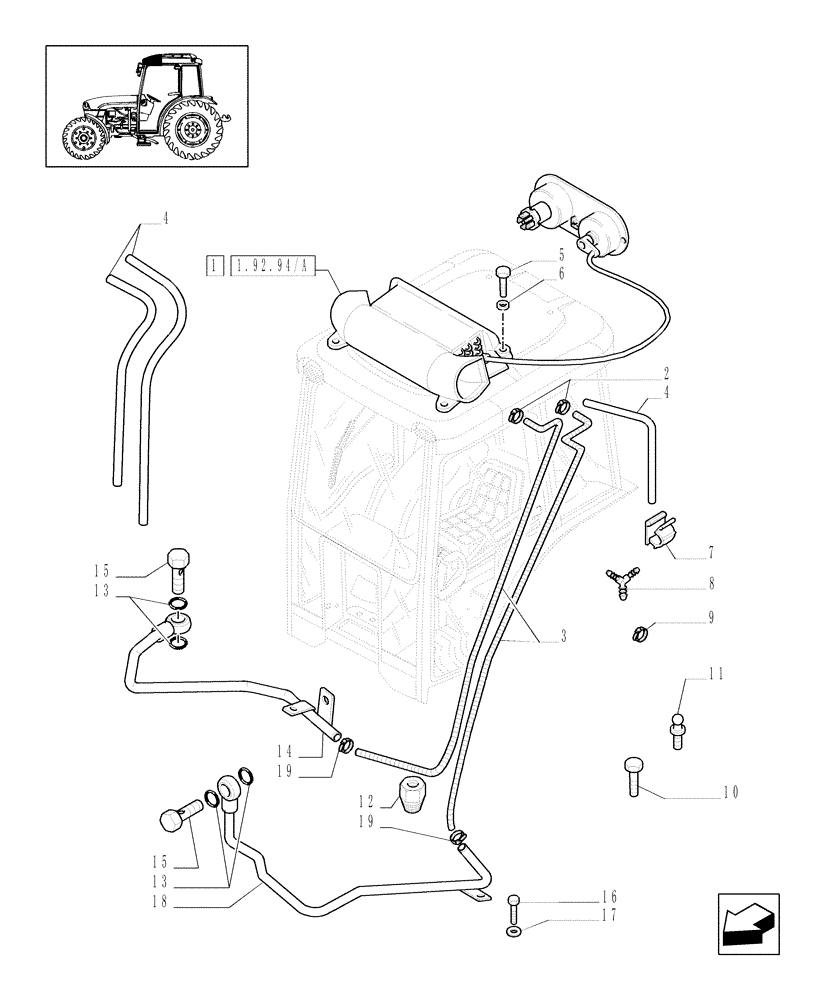

Запчасти Case IH JX1085C (1.92.94[03]) - CAB - HEATING SYSTEM (10) - OPERATORS PLATFORM/CAB

1

5192078

HEATER

ASSY

1шт.

2

13000390

HOSE CLAMP,16mm - 25mm, Worm Gear

D=16-25

2шт.

3

5143838

FLEXIBLE HOSE

3000mm

1шт.

DI=14, DE=21-22.5

1шт.

4

19053382

HOSE,10.00 mm

10x15

1шт.

5

16044024

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

2шт.

6

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

6

13578311

WASHER

D=8

2шт.

7

5182865

CLIP

1шт.

8

5186511

HYD CONNECTOR

Drain

1шт.

9

13423577

HOSE CLAMP,16.5mm - 18.3mm

D=16-18

2шт.

9

10186890

HOSE CLAMP,M14-16, Worm

1шт.

10

13278214

SCREW,M6 x 18mm

10шт.

10

18770114

SCREW

M6x16

4шт.

11

15152011

BALL STUD

PIN

10шт.

12

87311071

ADAPTER

1/2"-14NPTF, M18x1.5

1шт.

13

5167640

SEALING WASHER,14.09mm ID x 26.45mm OD x 1.5mm Thk

18x24x1.5

4шт.

14

87310977

RIGID TUBE

Delivery

1шт.

15

5100984

BANJO BOLT,M18 x 1.5, 34mm L

M18 x 1.5 x 34

2шт.

16

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

1шт.

16

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

1шт.

17

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

17

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

1шт.

18

87310978

RIGID TUBE

Recovery

1шт.

19

13000490

HOSE CLAMP,20mm - 32mm, Worm Gear

D=20-30

2шт.
