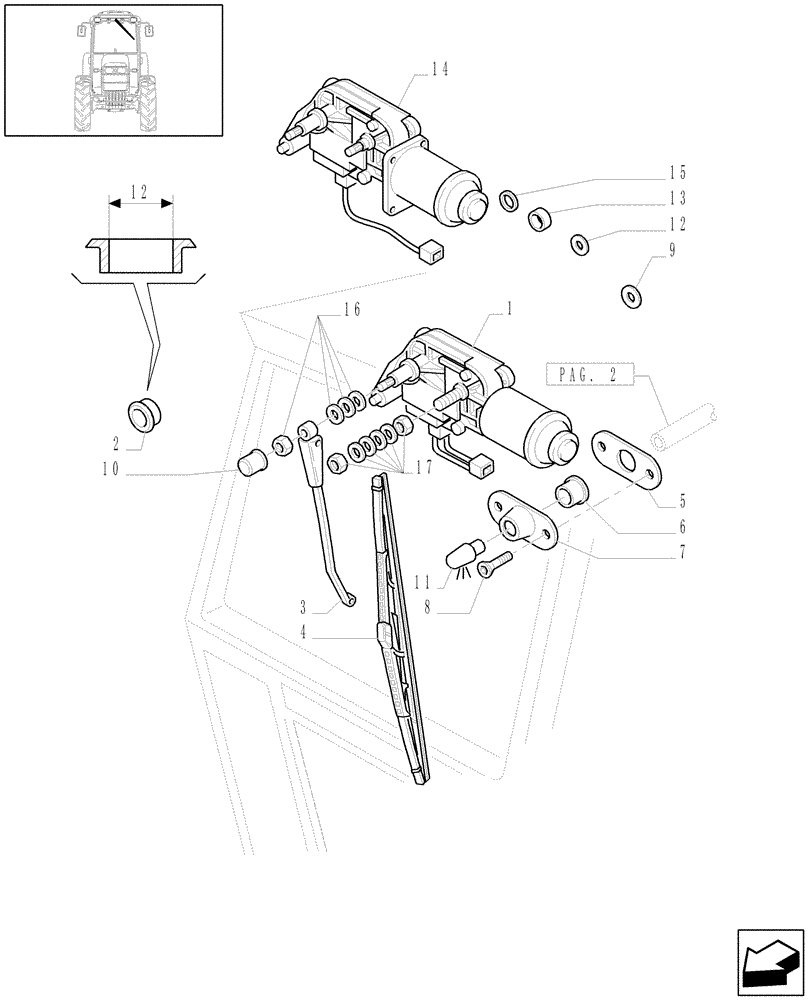

Запчасти Case IH JX1085C (1.92.91[01]) - FRONT WINDSHIELD WIPER (10) - OPERATORS PLATFORM/CAB

1

82007307

WIPER MOTOR

, Serial Range: -HJH065896

1шт.

2

10403780

GROMMET,16mm ID x 22mm Groove D x 29mm OD

16x1.5

1шт.

3

44910511

WIPER ARM

1шт.

4

82003345

WIPER BLADE,500mm L

1шт.

5

79086254

GASKET,2x4/20mm OD

1шт.

6

70741018

BUSHING

1шт.

7

79086238

SUPPORT

1шт.

8

5182240

SCREW,7 x 9.5mm

M7x9.5

2шт.

9

81872309

SPACER,8.2mm ID x 36mm OD x 10.2mm L

1шт.

10

5132136

CAP COVER,M8

1шт.

11

44911649

NOZZLE

1шт.

12

83961985

SPACER,12.6mm ID x 18mm OD x 6.5mm L

2шт.

13

83962050

SPACER,13.5mm ID x 35mm OD x 3mm Thk

, Serial Range: -C5548

2шт.

14

87518043

WIPER MOTOR,12V

, Serial Range: HJH065897-C5598

1шт.

14

87623345

WIPER MOTOR,12V, 2 SPD

, Start Serial: D5598

1шт.

15

83995356

RUBBER SEAL,13mm ID x 35mm OD x 3mm L

, Start Serial: D5548

2шт.

16

9970351

KIT

1шт.

17

9970352

KIT

1шт.
