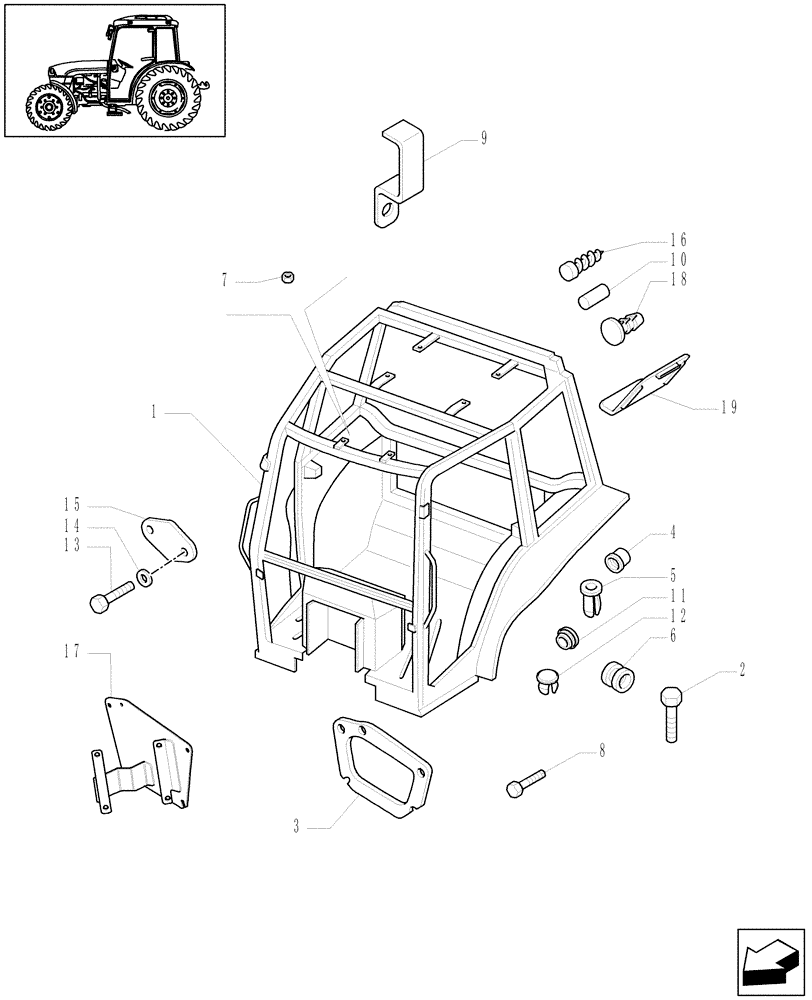

Запчасти Case IH JX1085C (1.92.90/02) - (VAR.466-503) "A" PILLAR TYPE VERTICAL EXHAUST W/ GUARD SHIELD FOR CAB - CAB FRAME (10) - OPERATORS PLATFORM/CAB

1

47135877

CAB FRAME

VAR.503

1шт.

With opening windscreen

1шт.

1

87341015

CAB FRAME

VAR.466

1шт.

With fix windscreen

1шт.

2

14441027

SCREW,Flat Csk Hd, M5 x 30mm, Cl 8.8, Full Thd

M5 x 30

2шт.

3

47133700

BRACKET

3шт.

4

5182438

PLUG,14mm ID x 19mm OD x 12mm Thk

2шт.

5

14115781

GROMMET

D=5

4шт.

6

10403380

RING,10mm ID x 22mm OD x 12mm Thk

10 x 2.5

2шт.

7

86625075

NUT,M4 x 0.7, Cl 8

2шт.

8

13274124

SCREW,Pozidriv Pan Hd, M5 x 14mm, Cl 8.8, Full Thd

6шт.

9

47133678

BRACKET

2шт.

10

15811787

COVER

17 x 10.5, Serial Range: -C5548

3шт.

11

5108456

PLUG

D=10,THK.2

4шт.

11

14508287

PLUG,50mm, Black

D=50

2шт.

11

5115440

PLUG,38.5mm

D=38.5

2шт.

11

14507687

PLUG,20mm ID

VAR.503

1шт.

12

5112608

PLUG,9mm, Black

D=9

3шт.

13

13276114

SCREW,Pozidriv Pan Hd, M6 x 14mm

Var. 466

2шт.

14

10516474

LOCK WASHER

D=6

2шт.

15

5191269

COVER PLATE

1шт.

16

14122719

STUD,5 x 9mm

5 x 9

23шт.

17

47133838

LOCKING TAB

VAR.503

1шт.

18

14592587

BUTTON,Button, M6.50 x 3.50mm

, Start Serial: D5548

3шт.

19

5186509

PLUG

1шт.
