(1.92.88/05) - (VAR.031) FRONT HPL W/PTO & BRAKES W/ELECT. CONTROL - COVERINGS

Запчасти Case IH JX1085C (1.92.88/05) - (VAR.031) FRONT HPL W/PTO & BRAKES W/ELECT. CONTROL - COVERINGS (10) - OPERATORS PLATFORM/CAB

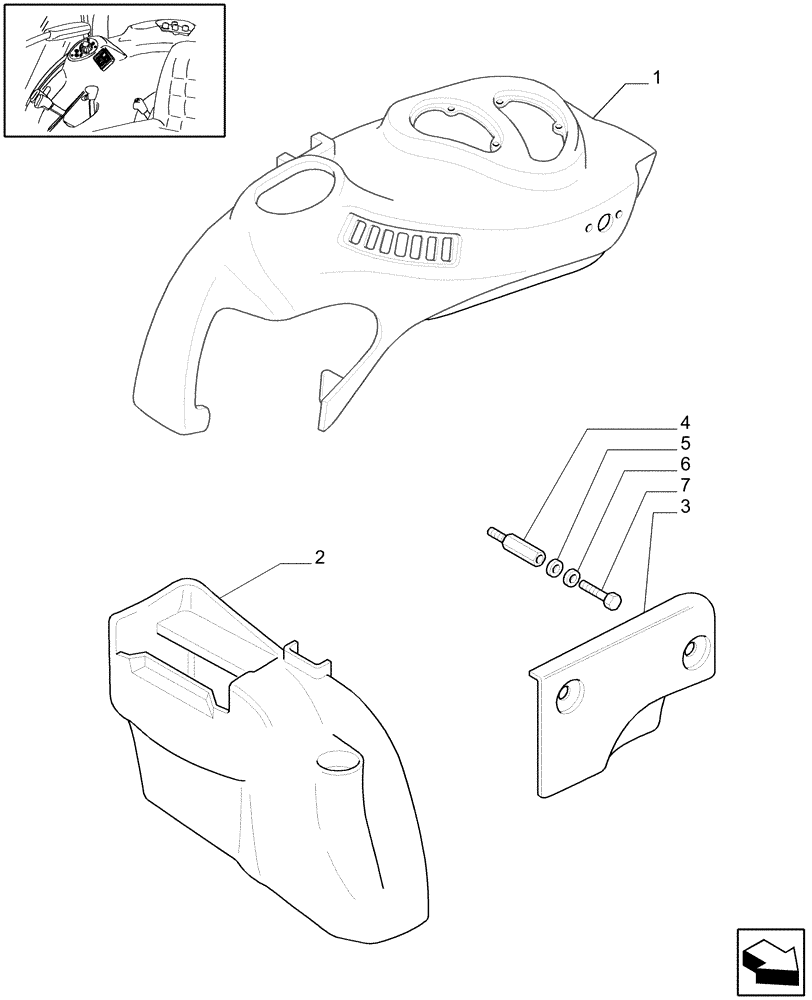

Схема запчастей Case IH JX1085C - (1.92.88/05) - (VAR.031) FRONT HPL W/PTO & BRAKES W/ELECT. CONTROL - COVERINGS (10) - OPERATORS PLATFORM/CAB
1
7
5
6
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87304666

COVER

1шт.

2

87304678

COVER

1шт.

3

47128695

COVER

1шт.

4

47128696

SPACER

1шт.

5

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

6

12648201

WASHER,6.15mm ID x 10mm OD x 1mm Thk

1шт.

7

10902424

SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd

1шт.
