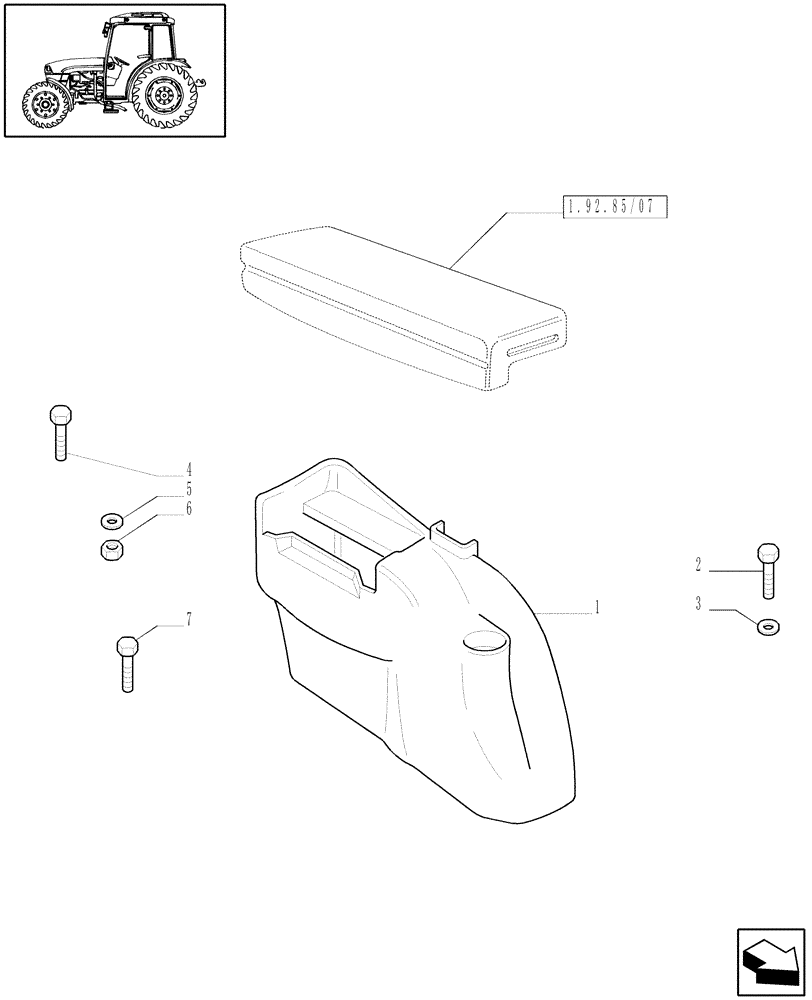

Запчасти Case IH JX1085C (1.92.88/03) - (VAR.865) PASSENGER SEAT - COVERINGS (10) - OPERATORS PLATFORM/CAB

1

87303919

COVER

, Serial Range: -C5727

1шт.

1

87623597

COVER

LH, Start Serial: D5727

1шт.

2

14304824

HEX SOC SCREW,M6 x 55mm, Cl 8.8

, Start Serial: D5727

2шт.

3

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

, Start Serial: D5727

4шт.

4

14305924

SCREW,M6 x 45mm

, Start Serial: D5727

1шт.

5

11195574

BELLEVILLE WASHER,M6 Bolt Size x 24mm OD x 1.5mm Thk

, Start Serial: D5727

4шт.

6

12574211

NUT,M6 x 1, Cl 8

, Start Serial: D5727

4шт.

7

14303934

SCREW,M6 x 70mm

, Start Serial: D5727

1шт.
