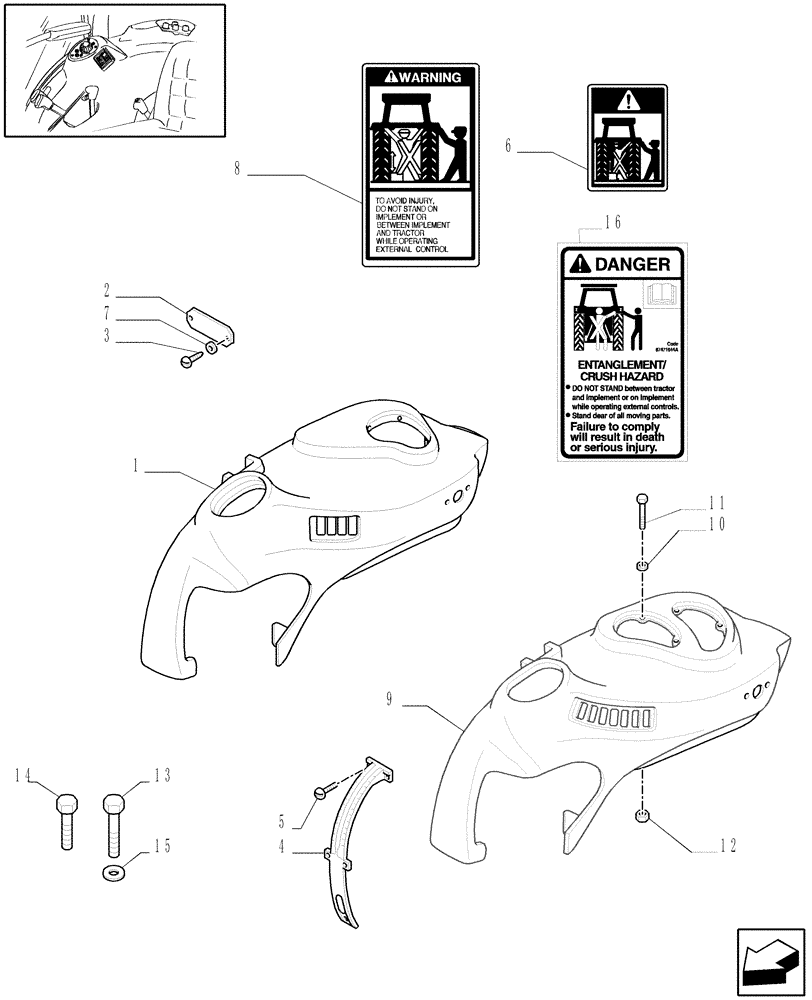

Запчасти Case IH JX1085C (1.92.88/02) - (VAR.126-127) ELECTRONIC LIFT - COVER (10) - OPERATORS PLATFORM/CAB

1

87303920

COVER

RH, Serial Range: -C5727

1шт.

2

87337057

BRACKET

1шт.

3

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

4

5180578

BEZEL

1шт.

5

13271814

SCREW,Pozidriv Pan Hd, M4 x 8mm

4шт.

6

47134222

DECAL

WARNING, Ext Switch F/HPL - W/EDC

2шт.

W/ISO Equipments

1шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

8

87327082

DECAL

WARNING, External Controls, Serial Range: -C5952

2шт.

W/NA Equipments

1шт.

9

87623610

COVER

RH, Start Serial: D5727

1шт.

10

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

, Start Serial: D5727

4шт.

11

14304824

HEX SOC SCREW,M6 x 55mm, Cl 8.8

, Start Serial: D5727

2шт.

12

12574211

NUT,M6 x 1, Cl 8

, Start Serial: D5727

1шт.

13

14303934

SCREW,M6 x 70mm

, Start Serial: D5727

1шт.

14

14305924

SCREW,M6 x 45mm

, Start Serial: D5727

1шт.

15

11195574

BELLEVILLE WASHER,M6 Bolt Size x 24mm OD x 1.5mm Thk

, Start Serial: D5727

4шт.

16

87471644

DECAL

, Start Serial: D5952

2шт.
