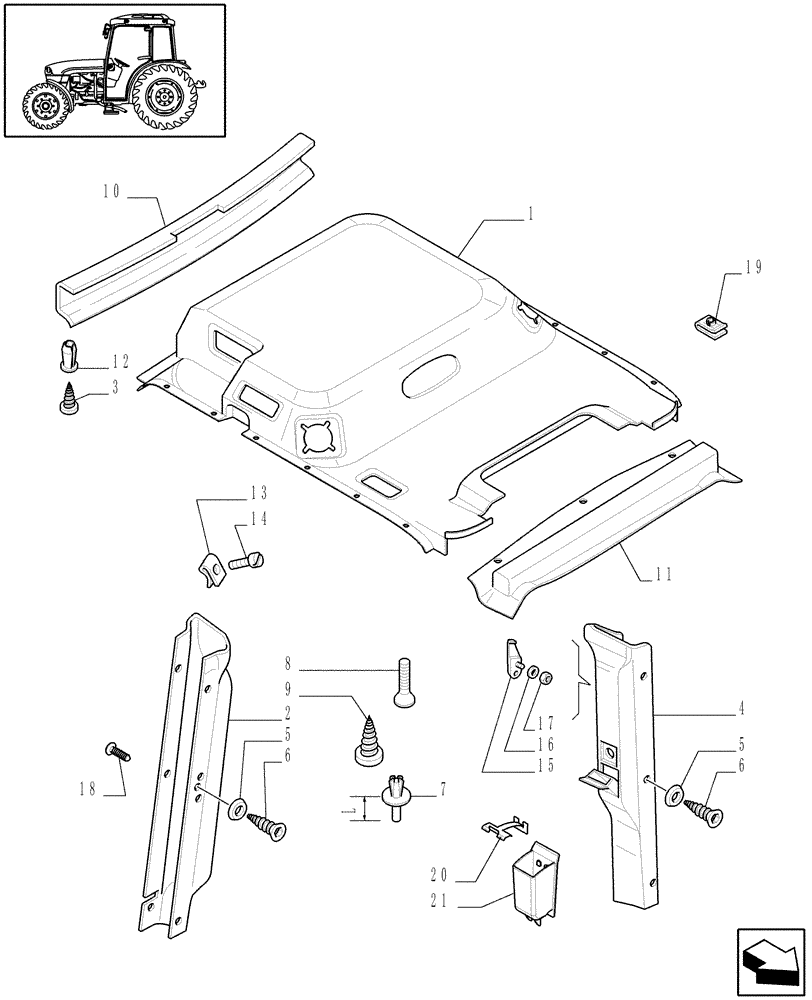

Запчасти Case IH JX1085C (1.92.88/01[03]) - COVERINGS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

5199944

SOFT TRIM

1шт.

2

5199946

SOFT TRIM

RH, Wheat

1шт.

3

15958704

SELF-TAP SCREW,Pan HD, M5 x 12mm

2шт.

4

47123853

SOFT TRIM

LH, Wheat

1шт.

5

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

6шт.

6

12673307

SELF-TAP SCREW,Csk Hd, M3.5 x 25mm

12шт.

7

5162852

RIVET,7.3mm OD x 12mm L

12 MM

27шт.

8

13311214

SCREW,Pozidriv Oval Hd, Csk, M5 x 20mm, Cl 5.8, Full Thd

2шт.

9

12670407

SELF-TAP SCREW,Csk Hd, M3.5 x 18mm

2шт.

9

14062814

SCREW,M4 x 20mm

M4x20

3шт.

10

87303921

COVER

Rear

1шт.

11

87303091

COVER

Front

1шт.

12

14115780

BLOCK

2шт.

13

14189974

BRACKET,J, #6

2шт.

14

15693507

SCREW,Over Head, M4.8 x 1.6 x 22mm

2шт.

14

15688507

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 22mm

2шт.

15

5178468

COAT HOOK

1шт.

16

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

17

10794014

NUT,M4, Cl 8

1шт.

18

83994150

PLUG,4.5-5.7mm OD

D=4.5

3шт.

19

87326498

SPRING,29.2mm L x 12mm W

2шт.

20

5196907

SPRING,33.5mm L x 15mm W x 0.5mm L

Wheat

1шт.

21

5199950

ASH TRAY

Wheat

1шт.
