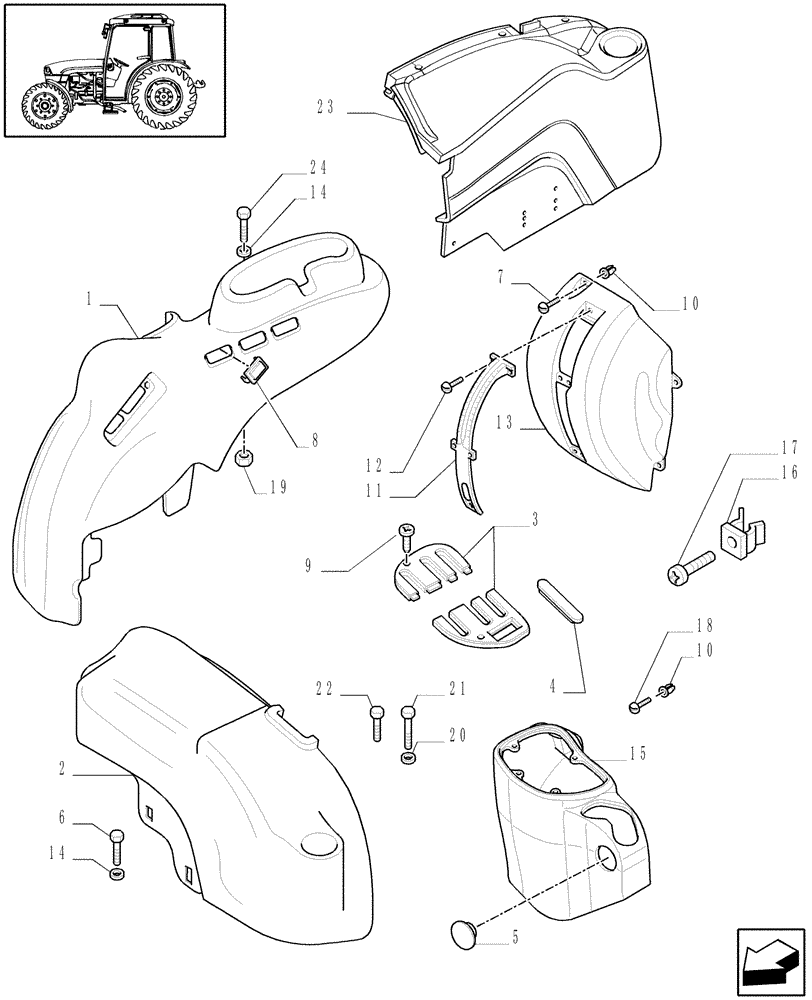

Запчасти Case IH JX1085C (1.92.88/01[02]) - COVERINGS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

87303918

COVER

RH, Serial Range: -C5727

1шт.

1

87623596

COVER

RH, Start Serial: D5727

1шт.

2

87303917

COVER

LH, Serial Range: -C5727

1шт.

3

5186621

COVER

1шт.

4

5182030

PLUG

122 MM

2шт.

4

5181959

PLUG

153 MM

1шт.

5

5194500

PLUG,45mm ID x 7mm L

2шт.

6

10902024

SCREW,Hex, M6 x 12mm, Cl 8.8

9шт.

6

14780711

SCREW,Cross Rec Cheese Hd, M8 x 35mm, Cl 5.8

4шт.

7

5182260

SELF-TAP SCREW,M5 x 16mm L

M5x16

4шт.

8

5166218

PLUG,Switch

1шт.

9

13271814

SCREW,Pozidriv Pan Hd, M4 x 8mm

4шт.

10

14115780

BLOCK

7шт.

11

5180577

BEZEL

1шт.

12

15958704

SELF-TAP SCREW,Pan HD, M5 x 12mm

5шт.

13

5180576

PADDING

1шт.

14

11195574

BELLEVILLE WASHER,M6 Bolt Size x 24mm OD x 1.5mm Thk

9шт.

15

5199940

REAR FENDER

Gray Grained

1шт.

16

14202883

BLOCK

8x32

3шт.

17

15917307

SELF-TAP SCREW,Cross Flat Hd, M4.2 x 32

3шт.

18

15917307

SELF-TAP SCREW,Cross Flat Hd, M4.2 x 32

3шт.

19

12574211

NUT,M6 x 1, Cl 8

, Start Serial: D5727

8шт.

20

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

, Start Serial: D5727

8шт.

21

14303934

SCREW,M6 x 70mm

, Start Serial: D5727

2шт.

22

14305924

SCREW,M6 x 45mm

, Start Serial: D5727

2шт.

23

87623595

COVER

LH, Start Serial: D5727

1шт.

24

14304824

HEX SOC SCREW,M6 x 55mm, Cl 8.8

, Start Serial: D5727

4шт.
