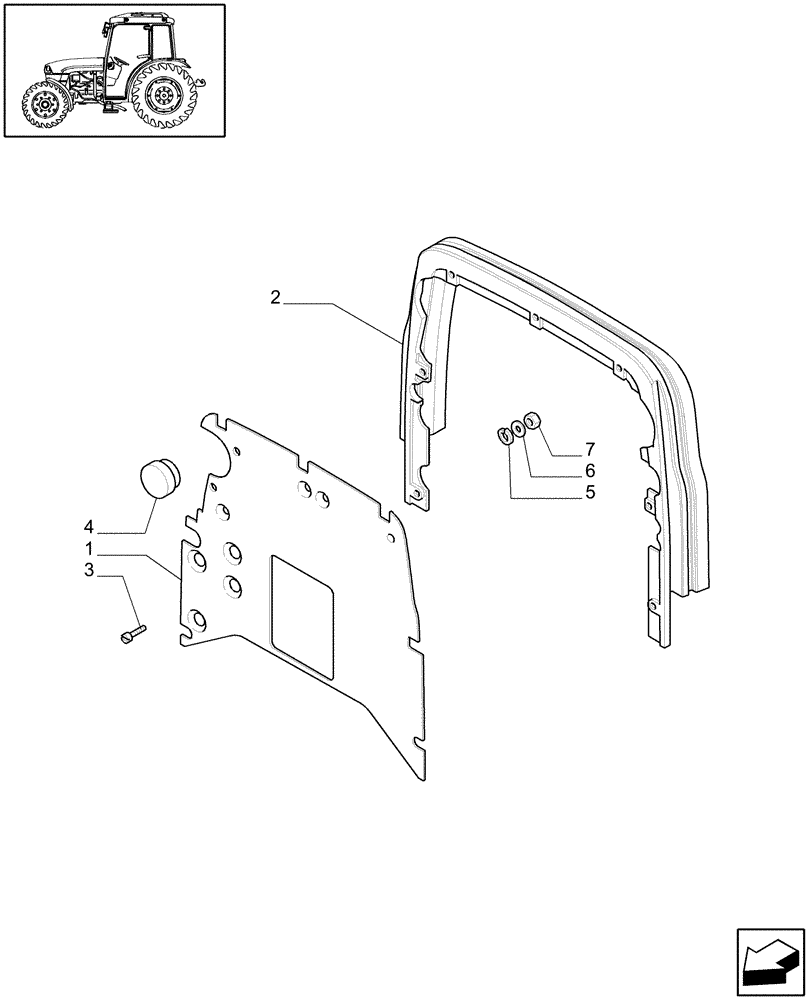

Запчасти Case IH JX1085C (1.92.88/01[01]) - COVERINGS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

47134704

INSULATOR

1шт.

2

87304614

SEAL

1шт.

3

14778914

SCREW,Cross Rec Cheese Hd, M6 x 22mm, Cl 5.8

2шт.

4

14507687

PLUG,20mm ID

D=20

3шт.

5

12646604

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

7шт.

6

10516474

LOCK WASHER

D=6

7шт.

7

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

5шт.
