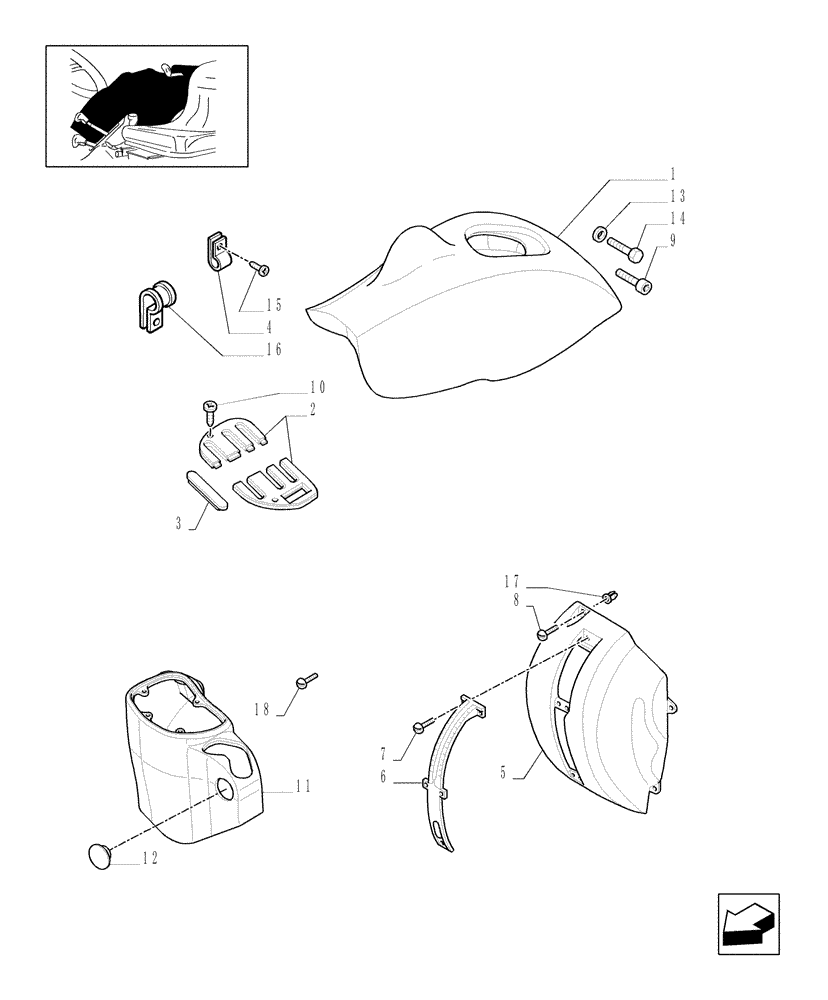

Запчасти Case IH JX1085C (1.92.88[02]) - COVERINGS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

5177750

PADDING

1шт.

2

5186621

COVER

1шт.

3

5182030

PLUG

122 MM

1шт.

3

5181959

PLUG

153 MM

1шт.

4

14372371

NUT,M4.2, U, 20.8mm long

3шт.

5

5180576

PADDING

1шт.

6

5180577

BEZEL

1шт.

7

15958704

SELF-TAP SCREW,Pan HD, M5 x 12mm

5шт.

8

5182260

SELF-TAP SCREW,M5 x 16mm L

M5x16

4шт.

9

14305024

HEX SOC SCREW,M6 x 10mm, Cl 8.8, Full Thd

1шт.

10

13271814

SCREW,Pozidriv Pan Hd, M4 x 8mm

4шт.

11

47123502

PADDING

Black

1шт.

12

5194500

PLUG,45mm ID x 7mm L

2шт.

13

11194874

BELLEVILLE WASHER,M6 Bolt Size x 18mm OD x 1.6mm Thk

2шт.

14

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

15

16084304

SELF-TAP SCREW,Pan Hd, M5 x 16

3шт.

16

10450390

RETAINER COLLAR,14mm, Coat, 9mm Bolt Hole, P Type

1шт.

17

14115780

BLOCK

4шт.

18

15917307

SELF-TAP SCREW,Cross Flat Hd, M4.2 x 32

3шт.
