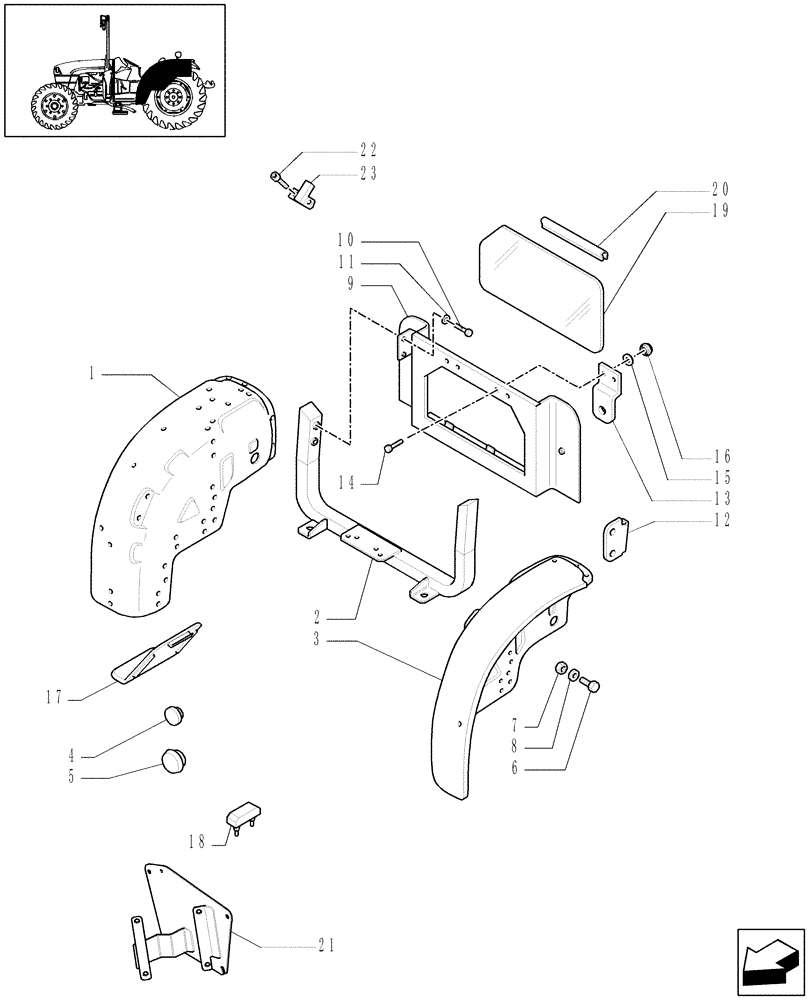

Запчасти Case IH JX1085C (1.92.87/03[01]) - (VAR.105) NOISE REDUCTION PACKAGE - MUDGUARDS AND FOOTBOARDS (10) - OPERATORS PLATFORM/CAB

1

47134366

PANEL

1шт.

2

5175429

U-FRAME

1шт.

3

47123863

REAR FENDER

Rear, LH

1шт.

4

14508387

PLUG

D=55

2шт.

5

5115440

PLUG,38.5mm

D=38.5

2шт.

6

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

4шт.

6

16204524

BOLT,Hex, M10 x 1.25 x 35mm, Cl 8.8

4шт.

6

15970924

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8

16шт.

6

14141411

SCREW,M6 x 20mm

M6 x 20

2шт.

7

12164714

NUT,M10 x 1.25, Cl 8

2шт.

7

12574211

NUT,M6 x 1, Cl 8

2шт.

8

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

24шт.

9

5199189

BULKHEAD

1шт.

10

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

11

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

12

5199188

BRACKET

LH

1шт.

12

5199187

BRACKET

RH

1шт.

13

47132738

BRACKET

2шт.

14

16043024

SCREW,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

4шт.

15

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

16

5120540

KNOB

4шт.

17

5186509

PLUG

1шт.

18

5168078

RUBBER PAD

2шт.

19

44911518

CAB GLASS ASSY

1шт.

20

47132744

RUBBER STRIP

1шт.

21

47133838

LOCKING TAB

1шт.

22

15909407

SELF-TAP SCREW,Pozidriv Oval Hd, M3.5 x 1.3 x 19mm

4шт.

23

82000487

LATCH

2шт.
