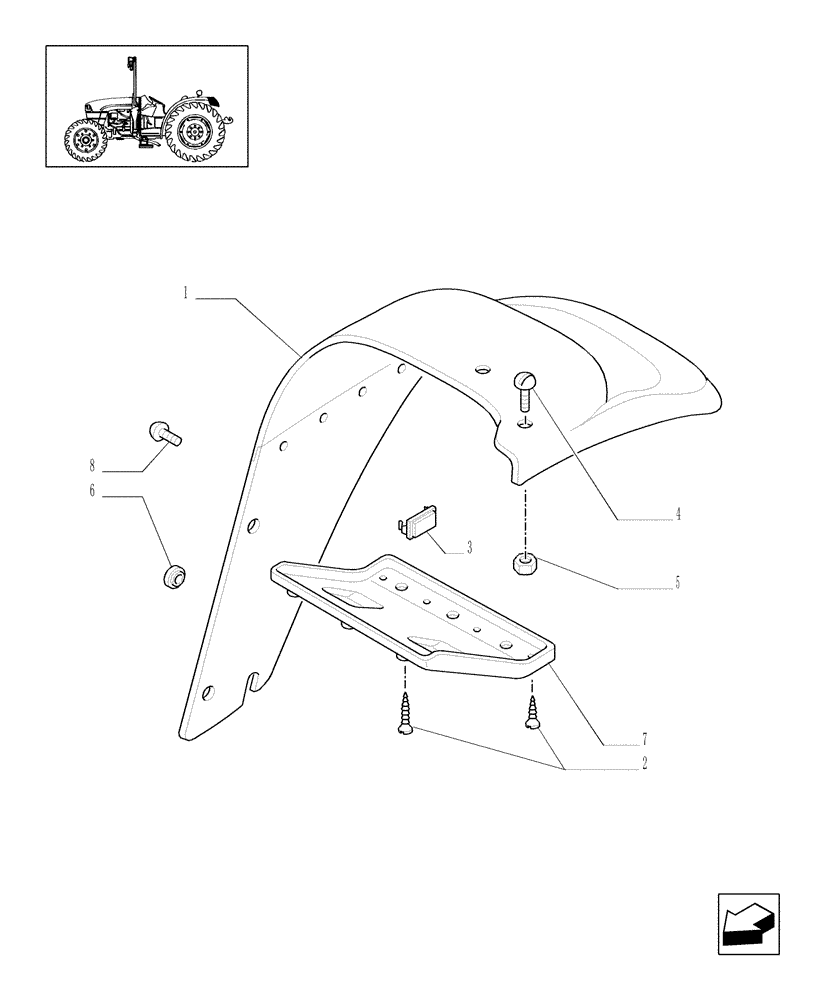

Запчасти Case IH JX1085C (1.92.87[03]) - MUDGUARDS AND FOOTBOARDS (10) - OPERATORS PLATFORM/CAB

1

47128768

REAR FENDER

LH, W/Cab

1шт.

1

47128767

REAR FENDER

RH, W/Cab

1шт.

1

5177948

GUARD

LH, VAR.007

1шт.

1

5177951

GUARD

RH, VAR.007

1шт.

1

5174214

GUARD

LH, L/Cab

1шт.

1

5174219

GUARD

RH, L/Cab

1шт.

2

15901404

SELF-TAP SCREW,Cross Pan Hd, M2.9 x 9.50mm

8шт.

3

5166218

PLUG,Switch

2шт.

4

86585703

SCREW,Phillips Drive, Pan HD, M8 x 20mm, Cl 4.8

8шт.

5

16104414

LOCK NUT,M8 x 1.25

6шт.

6

5108455

PLUG

D=15, L/Cab

2шт.

7

5174816

COVER

2шт.

8

15901604

SELF-TAP SCREW,Cross Pan Hd, M2.9 x 16mm

6шт.
