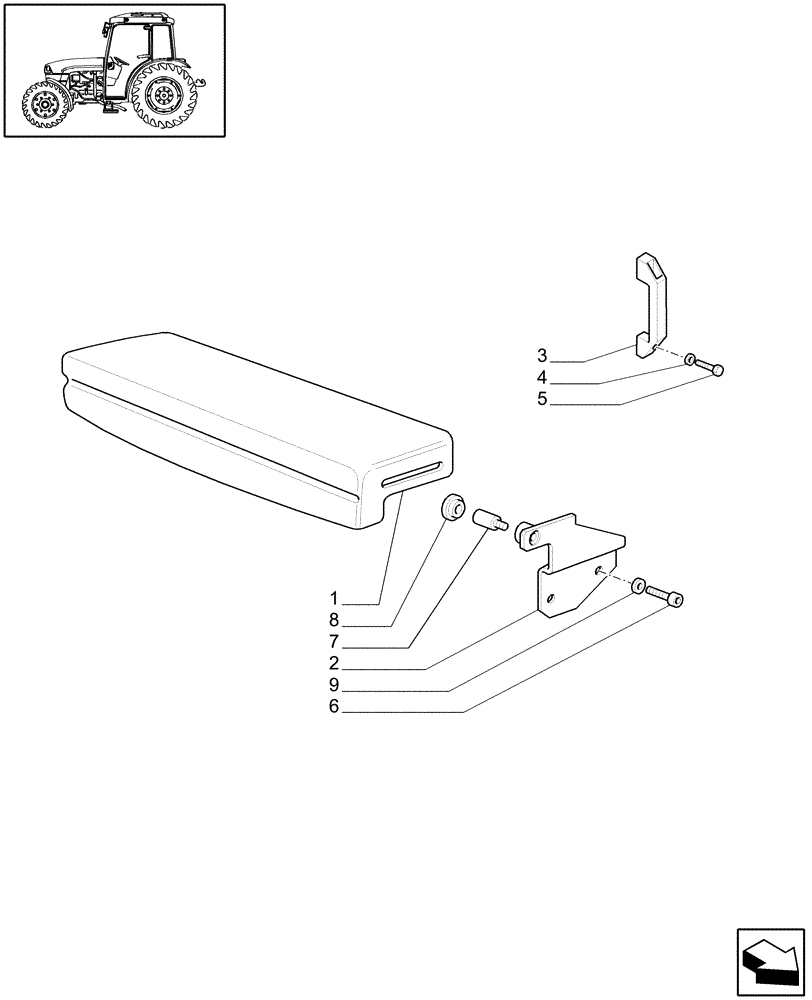

Запчасти Case IH JX1085C (1.92.85/09[01]) - (VAR.031) FRONT HPL W/PTO & BRAKES W/ELECT. CONTROL - PASSENGER SEAT (10) - OPERATORS PLATFORM/CAB

1

5199942

DRIVER SEAT

1шт.

2

47127315

ANGLE BAR

LH

1шт.

2

47126845

ANGLE BAR

RH

1шт.

3

5115818

HANDLE

1шт.

4

10413670

SEALING WASHER

8x12

2шт.

5

14306524

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

6

14306134

HEX SOC SCREW,M8 x 1.25 x 12mm, Cl 10.9, Full Thd

4шт.

7

47131267

SCREW

2шт.

8

47127848

BUSHING

2шт.

9

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.
