Запчасти Case IH JX1085C (1.92.85/06) - (VAR.956/1) SEAT WITH SWITCH - L/CAB (10) - OPERATORS PLATFORM/CAB

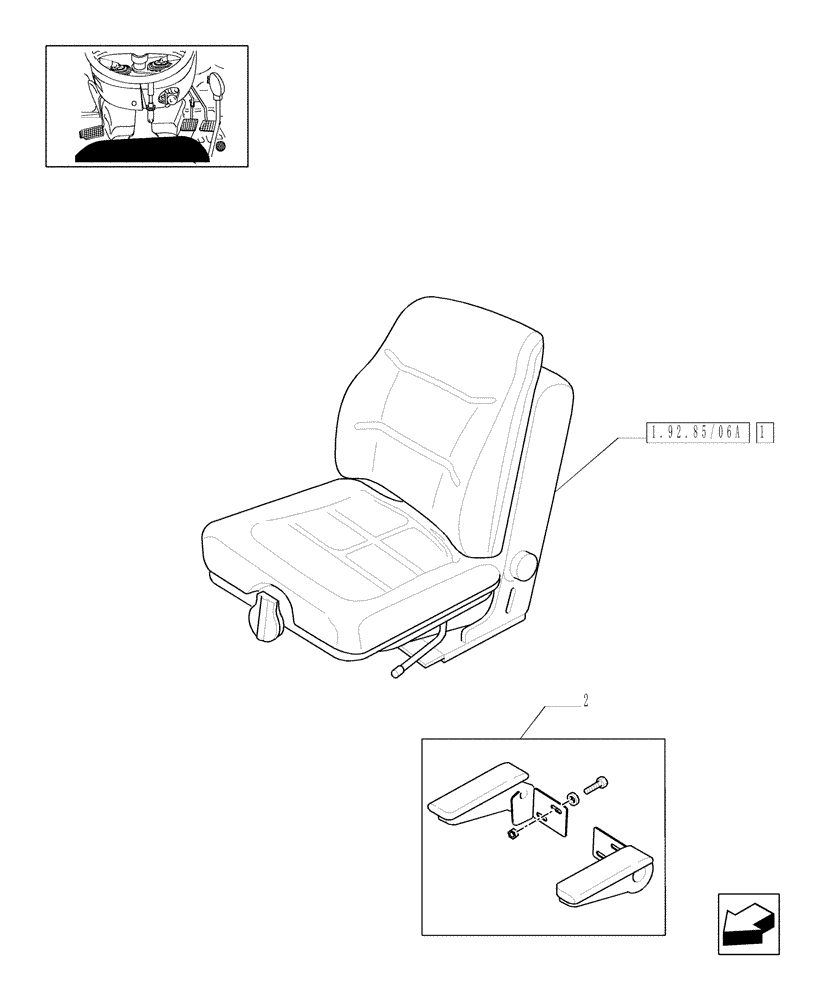

Схема запчастей Case IH JX1085C - (1.92.85/06) - (VAR.956/1) SEAT WITH SWITCH - L/CAB (10) - OPERATORS PLATFORM/CAB
1
1.92.85/06a
2

Артикул

Название

Примечание

Количество

1

47129033

DRIVER SEAT

ASSY, Serial Range: -C5798

1шт.

MT SC78M30, Mech. Suspension WHEAT

1шт.

1

87752033

DRIVER SEAT

ASSY, Start Serial: D5798

1шт.

With Increased Seat Back and Cushion

1шт.

MT SC88M30, Mech. Suspension WHEAT

1шт.

2

47127065

KIT

Armrests

1шт.

Выбрано товаров: 6
