(1.92.85/05) - (VAR.956) SEAT WITH BELTS AND SWITCH - L/CAB

Запчасти Case IH JX1085C (1.92.85/05) - (VAR.956) SEAT WITH BELTS AND SWITCH - L/CAB (10) - OPERATORS PLATFORM/CAB

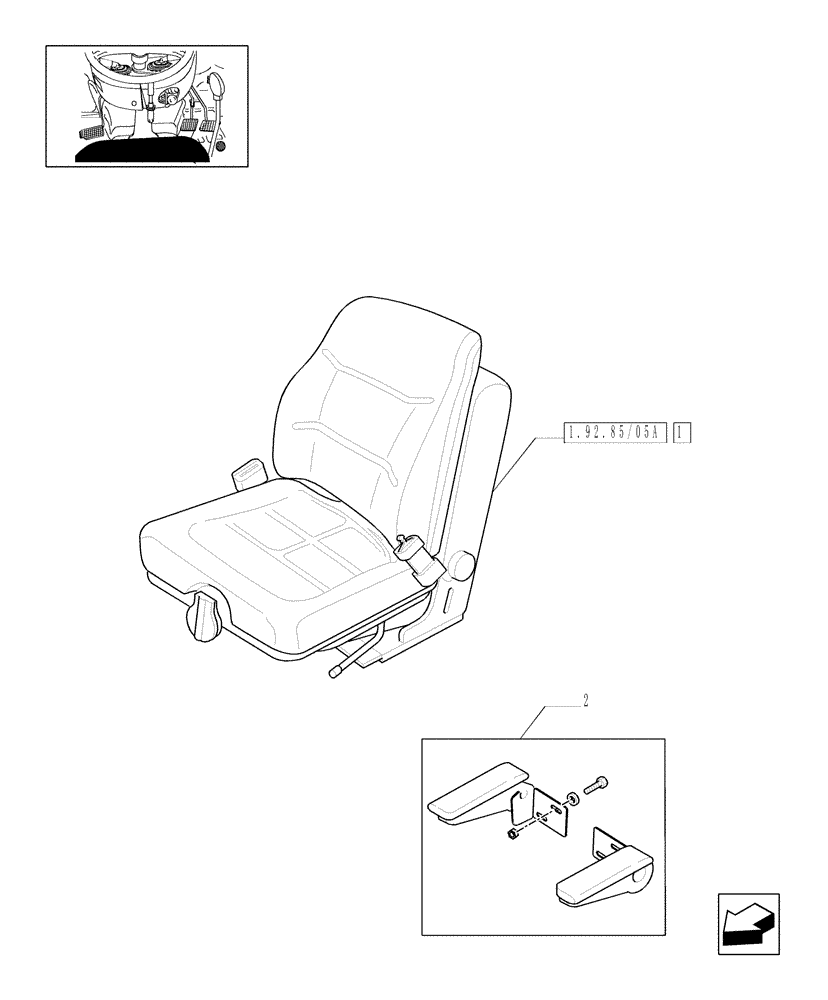

Схема запчастей Case IH JX1085C - (1.92.85/05) - (VAR.956) SEAT WITH BELTS AND SWITCH - L/CAB (10) - OPERATORS PLATFORM/CAB
2
1
1.92.85/05a
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47129035

DRIVER SEAT

ASSY, Serial Range: -C5798

1шт.

MT SC78M30, Mech. Suspension WHEAT

1шт.

1

87752036

DRIVER SEAT

ASSY, Start Serial: D5798

1шт.

With Increased Seat Back and Cushion

1шт.

MT SC88M30, Mech. Suspension WHEAT

1шт.

2

47127065

KIT

Armrests

1шт.
