Запчасти Case IH JX1085C (1.92.85/03) - (VAR.685) "MT" SEAT WITH BELTS - W/CAB (10) - OPERATORS PLATFORM/CAB

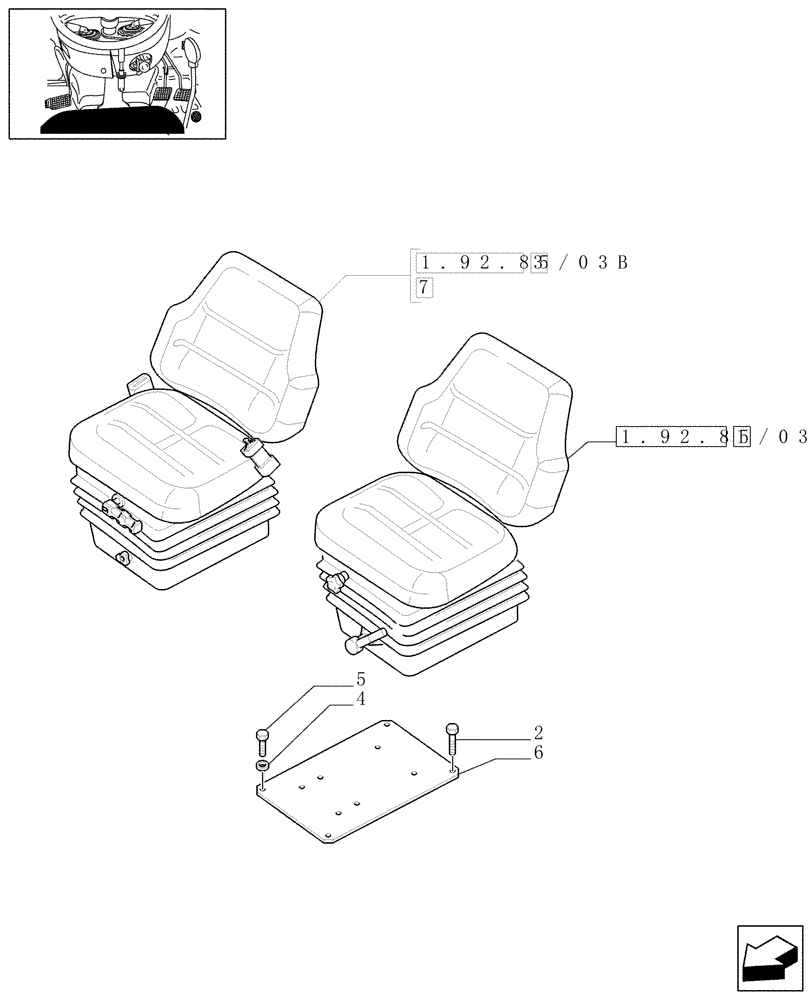

Схема запчастей Case IH JX1085C - (1.92.85/03) - (VAR.685) "MT" SEAT WITH BELTS - W/CAB (10) - OPERATORS PLATFORM/CAB
4
5
1.92.85/03b
1
2
7
3
6
1.92.85/03a

Артикул

Название

Примечание

Количество

1

47129030

DRIVER SEAT

ASSY, Serial Range: -C5644

1шт.

MT SC78M91, Mech. Suspension CASE Fabric

1шт.

2

14442021

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

, Start Serial: D5644

4шт.

3

87553351

DRIVER SEAT

ASSY, Serial Range: D5644-C5798

1шт.

MT SC78M200, Mech. Suspension CASE Fabric

1шт.

3

87730594

DRIVER SEAT

ASSY, Serial Range: D5798-C6330

1шт.

With Increased Seat Back and Cushion

1шт.

MT SC88M200, Mech. Suspension CASE Fabric

1шт.

4

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

, Start Serial: D5644

1шт.

5

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

, Start Serial: D5644

4шт.

6

5180356

PLATE

, Start Serial: D5644

1шт.

7

84164868

DRIVER SEAT

ASSY, Start Serial: D6330

1шт.

With Increased Seat Back and Cushion

1шт.

MT SC88M200, Mech. Suspension CASE Fabric

1шт.

Выбрано товаров: 14
