(1.92.85/02) - (VAR.850) "MT" SEAT WITH AIR SUSPENSION WITH BELTS AND SWITCH - W/CAB

Запчасти Case IH JX1085C (1.92.85/02) - (VAR.850) "MT" SEAT WITH AIR SUSPENSION WITH BELTS AND SWITCH - W/CAB (10) - OPERATORS PLATFORM/CAB

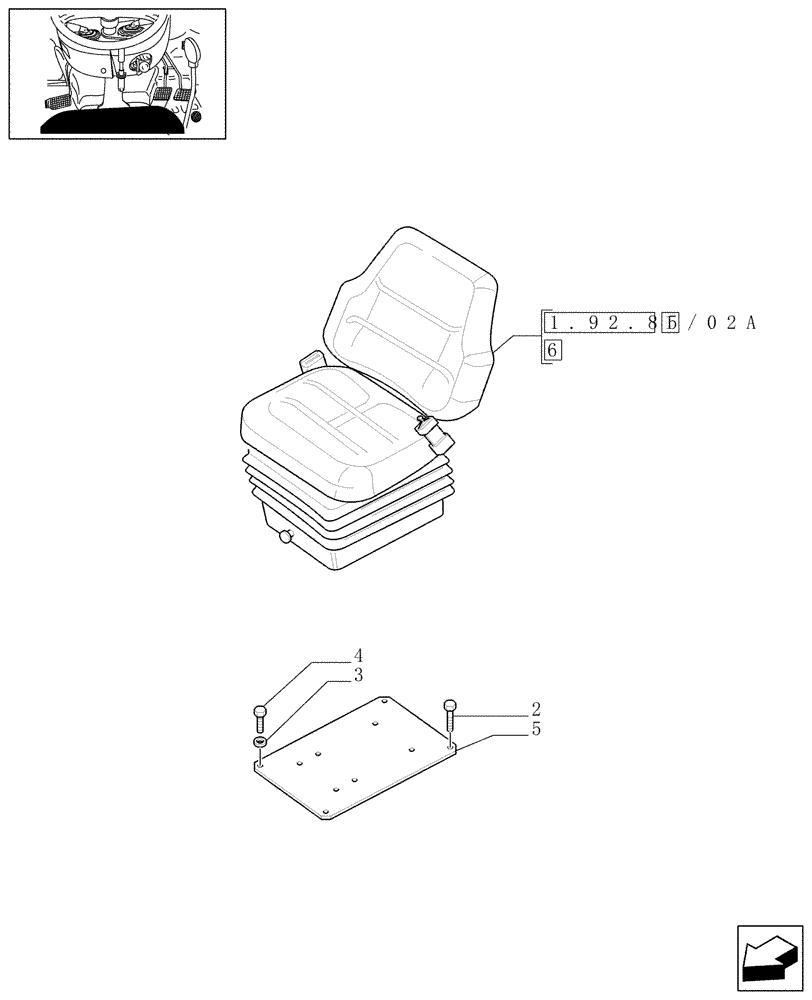

Схема запчастей Case IH JX1085C - (1.92.85/02) - (VAR.850) "MT" SEAT WITH AIR SUSPENSION WITH BELTS AND SWITCH - W/CAB (10) - OPERATORS PLATFORM/CAB
2
4
1.92.85/02a
1
5
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47129031

DRIVER SEAT

ASSY, Serial Range: -C5798

1шт.

MT SC78M97/3, Pneum. Suspension CASE FABRIC

1шт.

1

87751929

DRIVER SEAT

ASSY, Serial Range: D5798-C6330

1шт.

With Increased Seat Back and Cushion

1шт.

MT SC88M97/3, Pneum. Suspension CASE FABRIC

1шт.

2

14442027

SCREW,Flat Csk Hd, M8 x 1.25 x 20mm, Cl 8.8

, Start Serial: D5644

4шт.

3

5182251

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

, Start Serial: D5644

4шт.

4

5183645

SCREW,Hex, M8 x 22mm, Cl 8.8

, Start Serial: D5644

4шт.

5

5180356

PLATE

, Start Serial: D5644

1шт.

6

84164869

DRIVER SEAT

ASSY, Start Serial: D6330

1шт.
