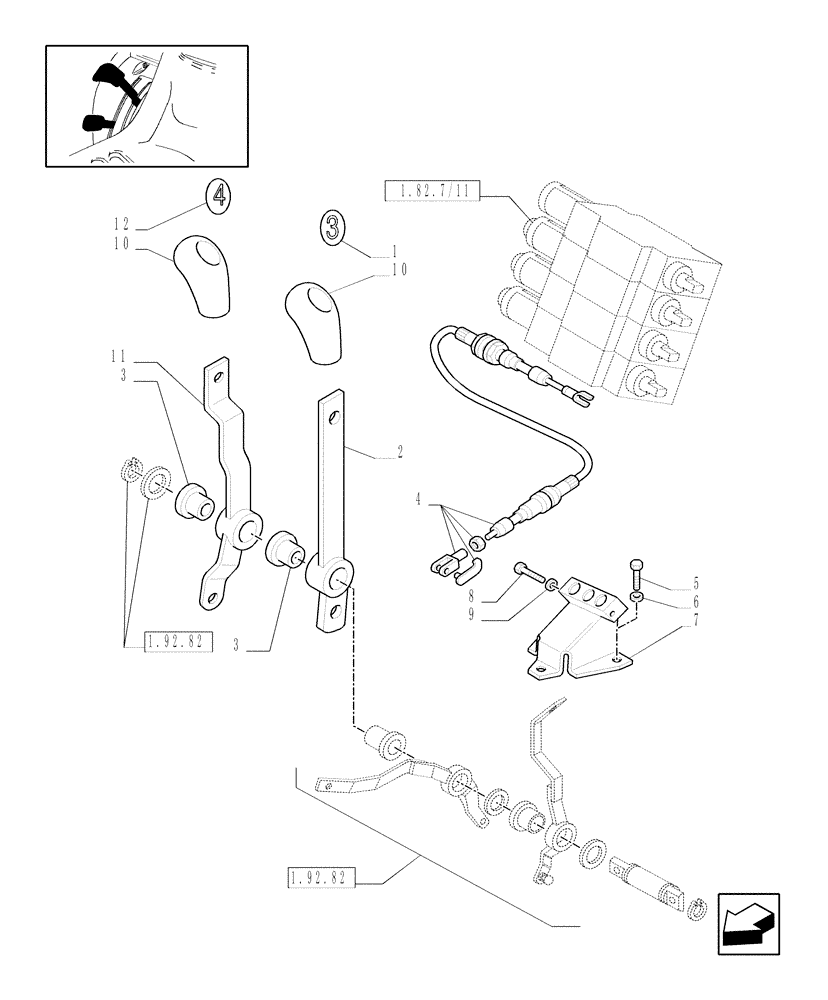

Запчасти Case IH JX1085C (1.92.82/10[02]) - (VAR.165) 4 REAR REMOTE VALVES FOR MDC - LEVERS (10) - OPERATORS PLATFORM/CAB

1

47057201

IDEOGRAM

Brown

1шт.

2

47127677

LEVER

1ST-4TH Distr.

1шт.

3

5154842

BUSHING,21mm ID x 27mm OD x 22mm L

21x27x22

2шт.

4

5199209

CABLE,900mm L

2шт.

5

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

3шт.

6

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

7

47127691

SUPPORT

1шт.

8

14301624

HEX SOC SCREW,M5 x 70mm, Cl 8.8

1шт.

9

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

1шт.

10

47056482

KNOB

1шт.

11

47124727

LEVER

3RD Distr.

1шт.

12

47057202

EMBLEM

1шт.
