(1.92.76/ A) - LIGHTING COMPONENTS - BREAKDOWN - W/CAB

Запчасти Case IH JX1085C (1.92.76/ A) - LIGHTING COMPONENTS - BREAKDOWN - W/CAB (10) - OPERATORS PLATFORM/CAB

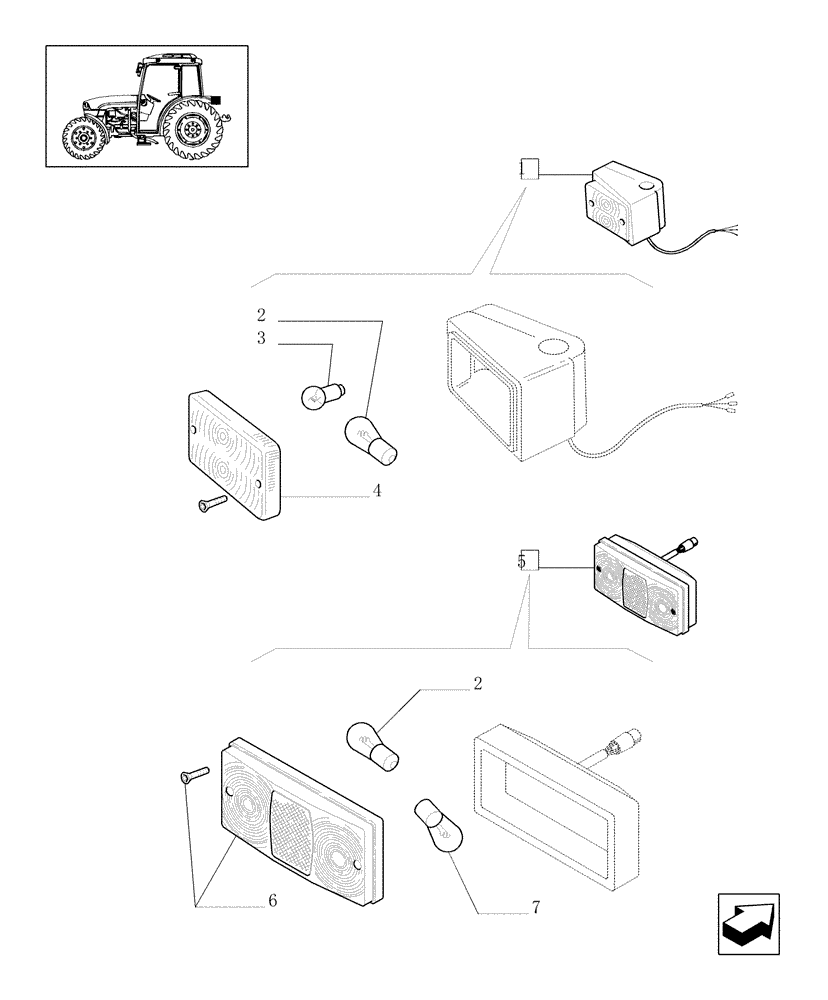

Схема запчастей Case IH JX1085C - (1.92.76/ A) - LIGHTING COMPONENTS - BREAKDOWN - W/CAB (10) - OPERATORS PLATFORM/CAB
6
2
2
7
1
5
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82009121

FRONT LAMP,12V, 21W, Amber/Clear

LH ASSY

1шт.

1

82009122

FRONT LAMP,12V, 21W, Amber/Clear

RH ASSY

1шт.

2

529068

BULB,#1156, 12V, 21W

4шт.

3

10857790

BULB,R10W, 12V, 5W

2шт.

4

71316700

LENS

Clear and Amber

2шт.

5

5170315

TAIL LAMP,12V, 21W, Amber/Red

ASSY

2шт.

6

9971658

LENS

Red

2шт.

7

14144690

BULB,P21/5W, 12V, 21/5W

12V-5/21W

1шт.
