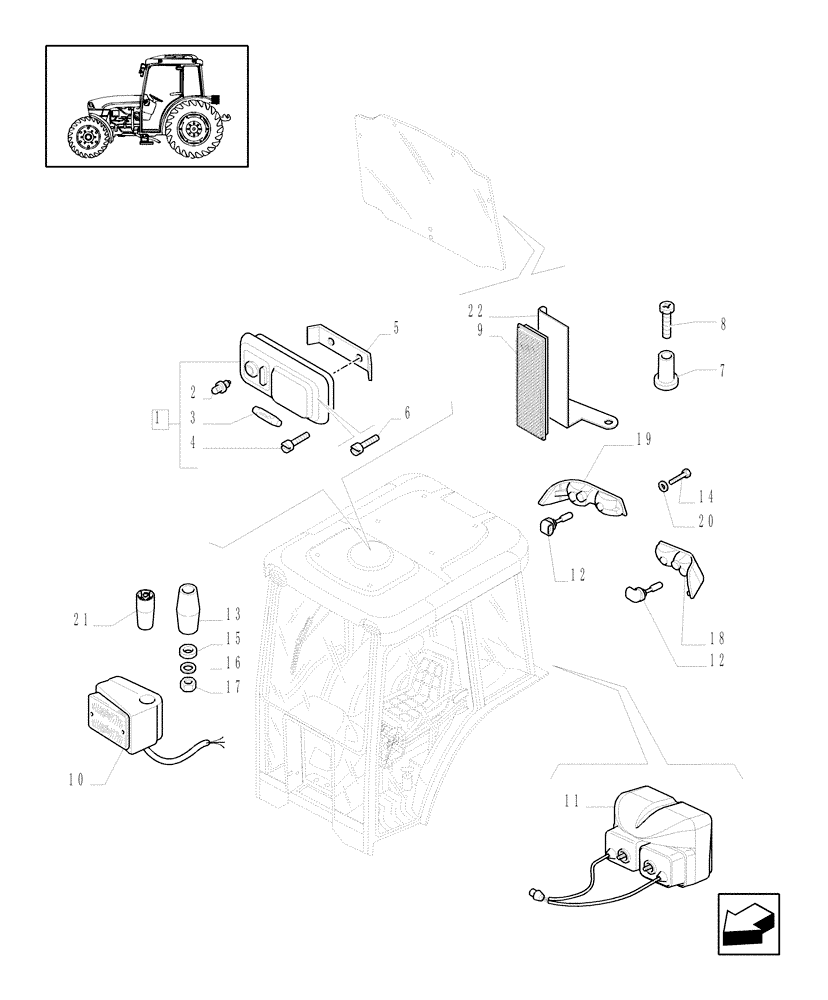

Запчасти Case IH JX1085C (1.92.76/02[01]) - (VAR.007) NA PACKAGE - LIGHTING COMPONENTS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

5141635

CEILING LAMP

1шт.

2

14144190

BULB,W5W, 12V, 5W

12V/5W

1шт.

3

10863090

BULB,C5W, 12V, 5W

1шт.

4

15902604

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 9.50mm

2шт.

5

44911604

BRACKET

1шт.

6

13272114

SCREW,Pozidriv Pan Hd, M4 x 14mm, Cl 5.8, Full Thd

3шт.

7

47131686

BUSHING,6.5mm ID x 18mm OD x 11.5mm L

4шт.

8

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

3шт.

9

82034755

REFLECTOR,RED

2шт.

10

5198317

FRONT LAMP

LH, Amber

1шт.

10

5198316

FRONT LAMP

RH, Amber

1шт.

11

47136930

TAIL LAMP

RH

1шт.

11

47136931

TAIL LAMP

LH

1шт.

12

323094A1

BULB

37W

2шт.

13

12329380

GROMMET

, Serial Range: -HJH079422

2шт.

14

12643704

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

4шт.

15

10399580

GROMMET,8mm ID x 14mm GRV ø x 20mm OD x 8mm Thk

8x2.5

2шт.

16

5155698

GASKET

4шт.

17

14084111

LOCK NUT,M5 x .8, Flg

4шт.

18

279224A1

WARNING LIGHT

LH

1шт.

19

279223A1

WARNING LIGHT

RH

1шт.

20

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

2шт.

21

47135267

ELEC CONNECTOR,Female, 4 Cavities

, Start Serial: HJH079423

2шт.

22

87531430

SUPPORT

LH, Start Serial: HJH062862

1шт.

22

87531431

SUPPORT

RH, Start Serial: HJH062862

1шт.
