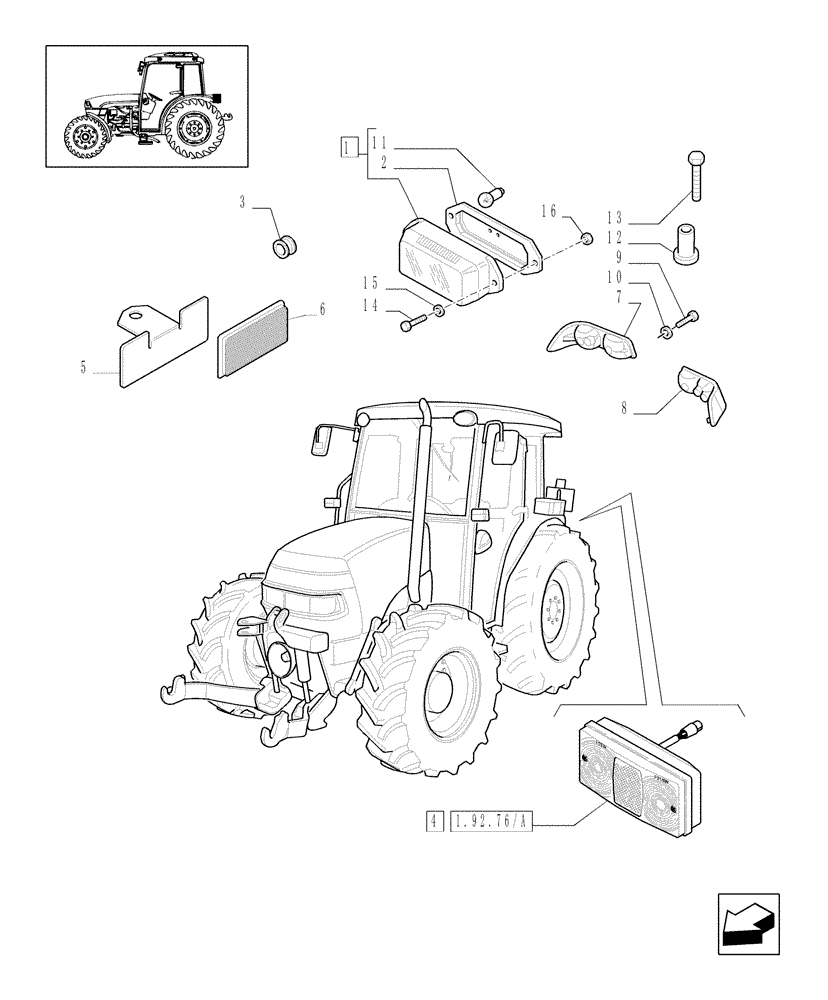

Запчасти Case IH JX1085C (1.92.76[02]) - LIGHTING COMPONENTS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

5117942

NUMBER PLATE LAMP

1шт.

2

5108110

GASKET

1шт.

3

10396280

GROMMET

M10 x 1.5

1шт.

4

5170315

TAIL LAMP,12V, 21W, Amber/Red

2шт.

5

5189844

SUPPORT

2шт.

6

82002957

REFLECTOR

2шт.

7

44995031

LAMP,Amber

RH

1шт.

8

44995030

LAMP,Amber

LH

1шт.

9

10903024

BOLT,Hex, M6 x 35mm, Cl 8.8

2шт.

9

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

2шт.

10

12643704

WASHER,6.15mm ID x 18mm OD x 1.5mm Thk

4шт.

11

10857790

BULB,R10W, 12V, 5W

1шт.

12

47131686

BUSHING,6.5mm ID x 18mm OD x 11.5mm L

2шт.

13

15902604

SELF-TAP SCREW,Cross Pan Hd, M3.5 x 9.50mm

2шт.

14

13274214

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

, Start Serial: D5669

2шт.

15

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

, Start Serial: D5669

2шт.

16

15896414

NUT,M5, Cl 8

, Start Serial: D5669

2шт.
