(1.92.75/11) - (VAR.067) ISO - 16X16 WITH SYNCHRO GEAR AND POWER SHUTTLE - ELECTRIC CABLES - L/CAB

Запчасти Case IH JX1085C (1.92.75/11) - (VAR.067) ISO - 16X16 WITH SYNCHRO GEAR AND POWER SHUTTLE - ELECTRIC CABLES - L/CAB (10) - OPERATORS PLATFORM/CAB

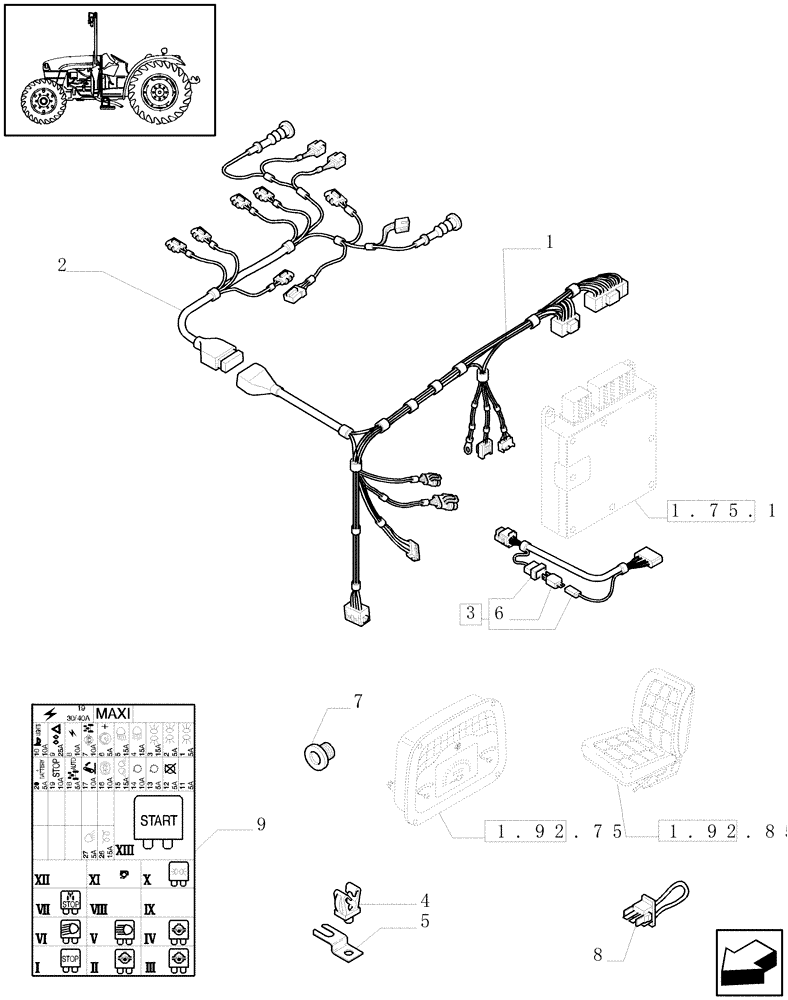

Схема запчастей Case IH JX1085C - (1.92.75/11) - (VAR.067) ISO - 16X16 WITH SYNCHRO GEAR AND POWER SHUTTLE - ELECTRIC CABLES - L/CAB (10) - OPERATORS PLATFORM/CAB
2
1
1.92.75
4
6
1.92.85
7
5
3
1.75.1/07
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47134764

ELECTRIC CABLE

Power Shuttle Transmission

1шт.

2

47134766

ELECTRIC CABLE

Power Shuttle Dashboard

1шт.

3

5188081

WIRE HARNESS

Seat Safety Circuit

1шт.

4

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

2шт.

5

5120229

PLATE

2шт.

6

83929594

DIODE

1шт.

7

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

8

5187976

BRIDGE

C11

1шт.

9

47129973

DECAL

Fuse

1шт.
