(1.92.75/10) - (VAR.065-066/1) ISO - 16X16 WITH SYNCHRO GEAR AND POWER SHUTTLE - ELECTRIC CABLES - W/CAB

Запчасти Case IH JX1085C (1.92.75/10) - (VAR.065-066/1) ISO - 16X16 WITH SYNCHRO GEAR AND POWER SHUTTLE - ELECTRIC CABLES - W/CAB (10) - OPERATORS PLATFORM/CAB

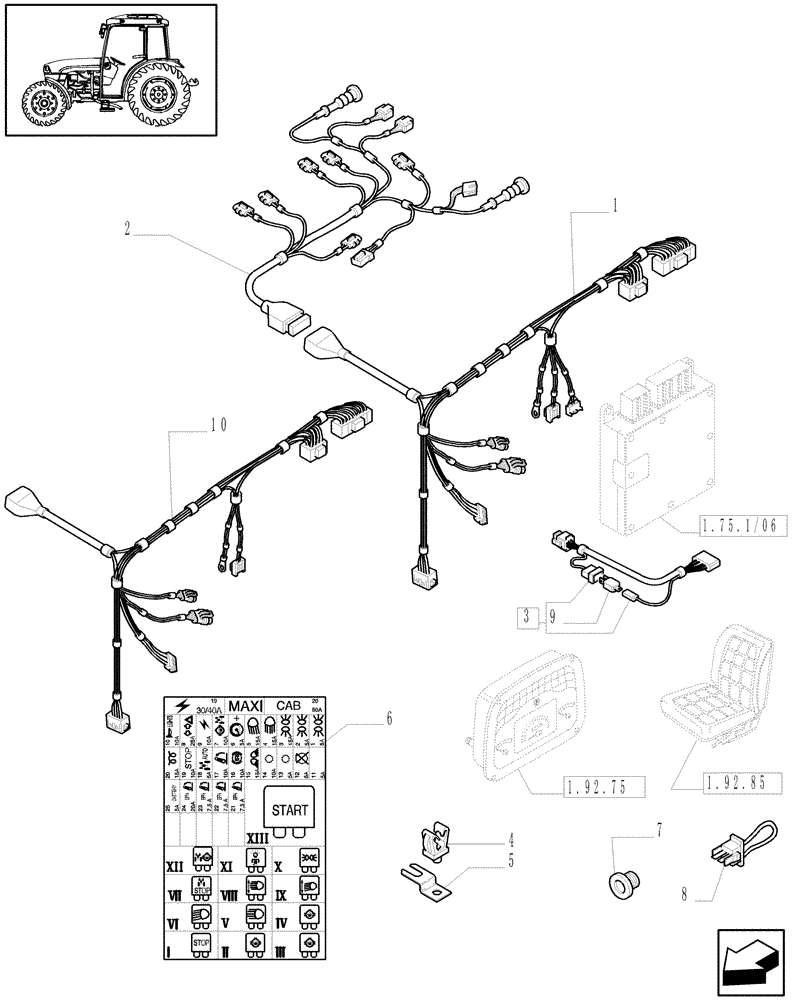

Схема запчастей Case IH JX1085C - (1.92.75/10) - (VAR.065-066/1) ISO - 16X16 WITH SYNCHRO GEAR AND POWER SHUTTLE - ELECTRIC CABLES - W/CAB (10) - OPERATORS PLATFORM/CAB
1
1.92.75
5
1.75.1/06
1.92.85
2
9
4
10
7
3
8
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47134764

ELECTRIC CABLE

, Serial Range: -HJH076230

1шт.

Power Shuttle Dashboard Harness

1шт.

2

47134765

ELECTRIC CABLE

1шт.

Power Shuttle Transmission Harness

1шт.

3

5188081

WIRE HARNESS

Seat Safety Circuit

1шт.

Seat Safety Circuit

1шт.

4

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

2шт.

5

5120229

PLATE

2шт.

6

47129932

DECAL

Fuse

1шт.

7

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

8

5187976

BRIDGE

1шт.

9

83929594

DIODE

1шт.

10

87530950

ELECTRIC CABLE

VAR.065, Start Serial: HJH076231

1шт.

Power Shuttle Dashboard Harness

1шт.
