Запчасти Case IH JX1085C (1.92.75/07[02A]) - (VAR.275-275/1) 32X16 (30KM/H) TRANSM. W/HI-LO & P. SHUTTLE, W/OIL COOLER - ELECTRIC CABLES - W/CAB - D5366 (10) - OPERATORS PLATFORM/CAB

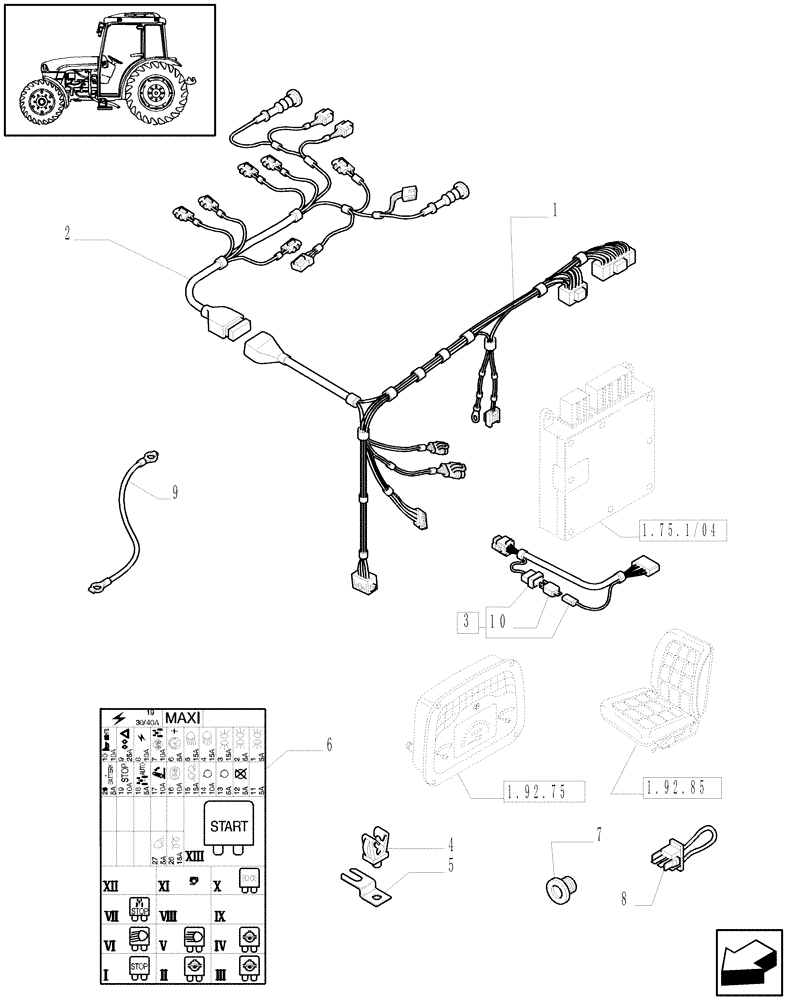

Схема запчастей Case IH JX1085C - (1.92.75/07[02A]) - (VAR.275-275/1) 32X16 (30KM/H) TRANSM. W/HI-LO & P. SHUTTLE, W/OIL COOLER - ELECTRIC CABLES - W/CAB - D5366 (10) - OPERATORS PLATFORM/CAB
3
9
7
8
10
2
5
4
1
6
1.92.85
1.75.1/04
1.92.75

Артикул

Название

Примечание

Количество

1

87530947

ELECTRIC CABLE

Power Shuttle Dashboard

1шт.

2

47134765

ELECTRIC CABLE

Power Shuttle Transmission

1шт.

3

5188081

WIRE HARNESS

Seat Safety Circuit Harness

1шт.

4

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

5шт.

5

5120229

PLATE

2шт.

6

47129973

DECAL

Fuse

1шт.

7

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

8

5187976

BRIDGE

C11

1шт.

9

87309787

ELECTRIC CABLE

Ground

1шт.

10

83929594

DIODE

1шт.

Выбрано товаров: 10
