(1.92.75/07[01]) - (VAR.275) 32X16 (30KM/H) TRANSM. W/HI-LO & P. SHUTTLE, W/OIL COOLER - ELECTRIC CABLES - L/CAB

Запчасти Case IH JX1085C (1.92.75/07[01]) - (VAR.275) 32X16 (30KM/H) TRANSM. W/HI-LO & P. SHUTTLE, W/OIL COOLER - ELECTRIC CABLES - L/CAB (10) - OPERATORS PLATFORM/CAB

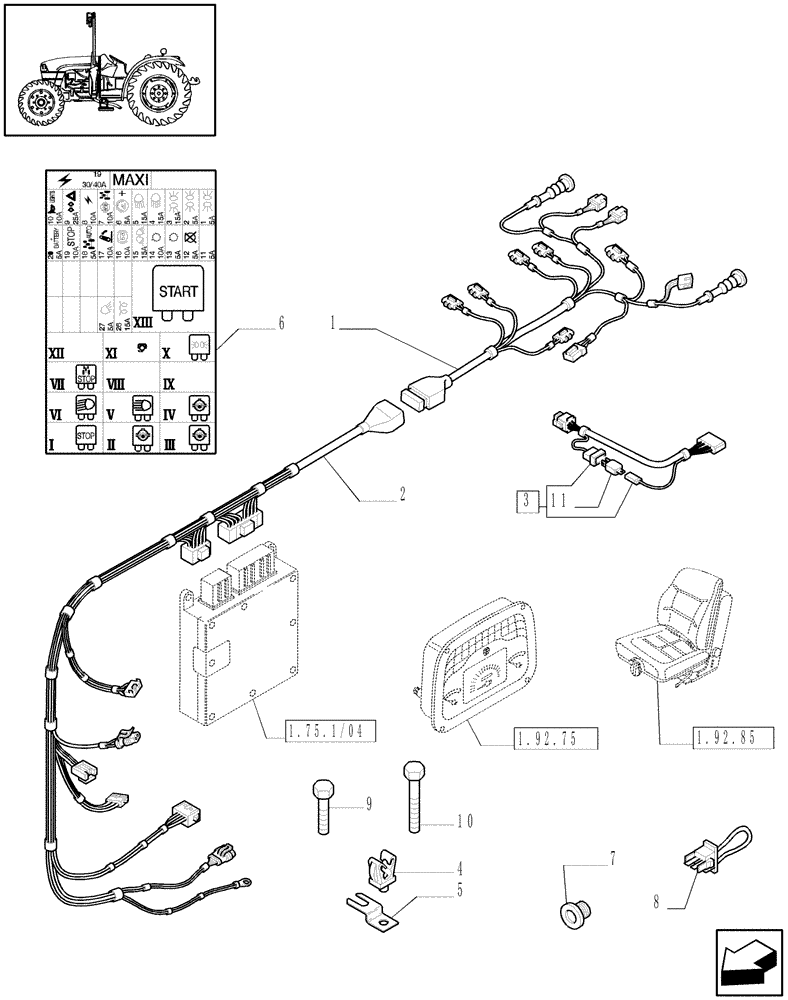

Схема запчастей Case IH JX1085C - (1.92.75/07[01]) - (VAR.275) 32X16 (30KM/H) TRANSM. W/HI-LO & P. SHUTTLE, W/OIL COOLER - ELECTRIC CABLES - L/CAB (10) - OPERATORS PLATFORM/CAB
10
3
2
4
7
5
6
1.92.85
1
1.75.1/04
1.92.75
8
11
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47134765

ELECTRIC CABLE

Power Shuttle Transmission

1шт.

2

47133587

ELECTRIC CABLE

Power Shuttle Dashboard

1шт.

3

5188081

WIRE HARNESS

Seat Safety Circuit

1шт.

4

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

5шт.

5

5120229

PLATE

2шт.

6

47129973

DECAL

Fuse

1шт.

7

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

8

5187976

BRIDGE

C11

1шт.

9

13273924

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

3шт.

10

13279221

SCREW,Pozidriv Pan Hd, M8 x 16mm, Cl 8.8, Full Thd

4шт.

11

83929594

DIODE

1шт.
