(1.92.75/04) - (VAR.278-278/1-296) NA - 16X16 (30KM/H) P.SHUTTLE W/OIL COOLER - ELECTRIC CABLES

Запчасти Case IH JX1085C (1.92.75/04) - (VAR.278-278/1-296) NA - 16X16 (30KM/H) P.SHUTTLE W/OIL COOLER - ELECTRIC CABLES (10) - OPERATORS PLATFORM/CAB

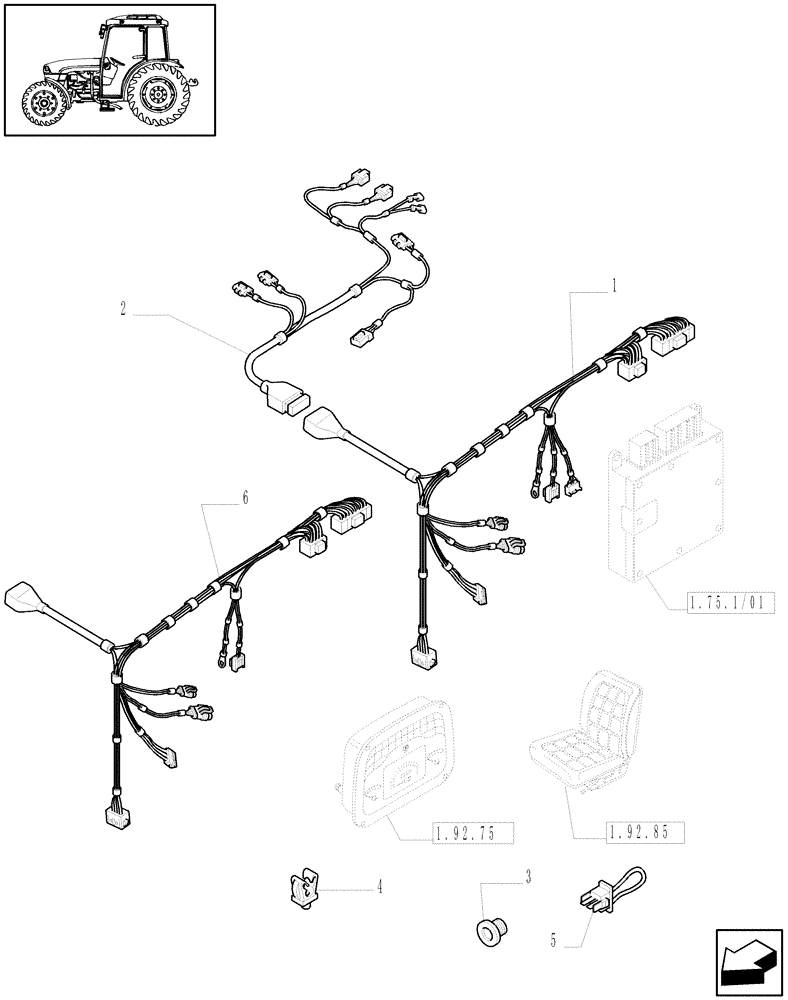

Схема запчастей Case IH JX1085C - (1.92.75/04) - (VAR.278-278/1-296) NA - 16X16 (30KM/H) P.SHUTTLE W/OIL COOLER - ELECTRIC CABLES (10) - OPERATORS PLATFORM/CAB
2
1.92.75
1.75.1/01
5
1
1.92.85
3
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47134764

ELECTRIC CABLE

Power Shuttle Dashboard, Serial Range: -HJH076230

1шт.

2

47134766

ELECTRIC CABLE

Power Shuttle Transmission, VAR.296

1шт.

3

87386328

GROMMET,47.5 ID x 70mm OD x 56mm L

1шт.

4

14574180

CLIP,15mm ID, 6mm Bolt Hole, P Type

VAR.296

2шт.

5

5187976

BRIDGE

VAR.296

1шт.

6

87530950

ELECTRIC CABLE

VAR.296, Power Shuttle Dashboard, Start Serial: HJH076231

1шт.
