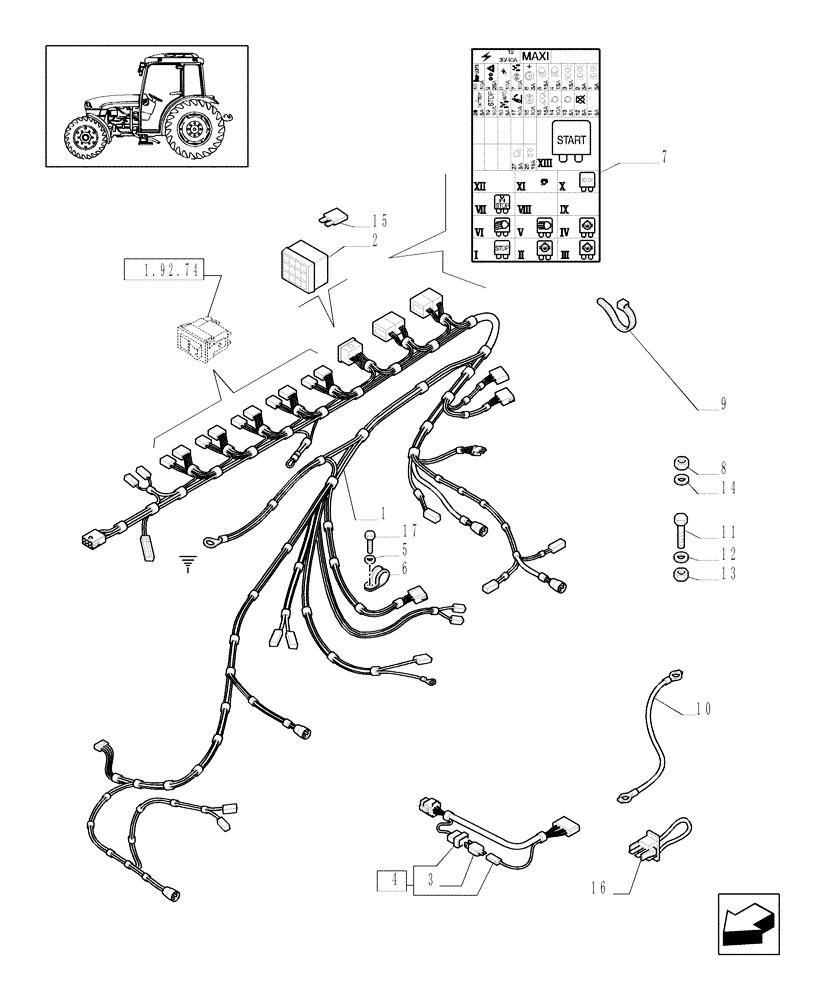

Запчасти Case IH JX1085C (1.92.75/03[03]) - (VAR.007) NA PACKAGE - ELECTRIC CONTROLS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

47126136

ELECTRIC CABLE

, Serial Range: -C5294

1шт.

1

87391526

ELECTRIC CABLE

, Start Serial: D5294

1шт.

2

47134166

FUSE BOX

1шт.

3

83929594

DIODE

1шт.

4

5188081

WIRE HARNESS

Seat Safety Circuit

1шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

6

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

2шт.

7

47129932

DECAL

1шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

9

85805383

CABLE TIE

CABLE STRAP

28шт.

10

87309787

ELECTRIC CABLE

Ground

1шт.

11

13273921

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

3шт.

11

13271614

SCREW,Pozidriv Pan Hd, M4 x 6mm

1шт.

12

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

3шт.

13

15896414

NUT,M5, Cl 8

2шт.

14

10615774

WASHER

D=10

2шт.

14

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

14

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6x16

1шт.

15

87693742

FUSE,5A

1шт.

15

9811773

FUSE,10A, Micro, Red

1шт.

15

84090658

FUSE,Lt Blue, 15 Amp

3шт.

15

92277

FUSE,30 Amp

25A

1шт.

16

47125756

JUMPER

C21, Serial Range: -HJH076230

1шт.

16

87371844

ELECTRIC CABLE

C21, Start Serial: HJH076231

1шт.

17

13279221

SCREW,Pozidriv Pan Hd, M8 x 16mm, Cl 8.8, Full Thd

4шт.
