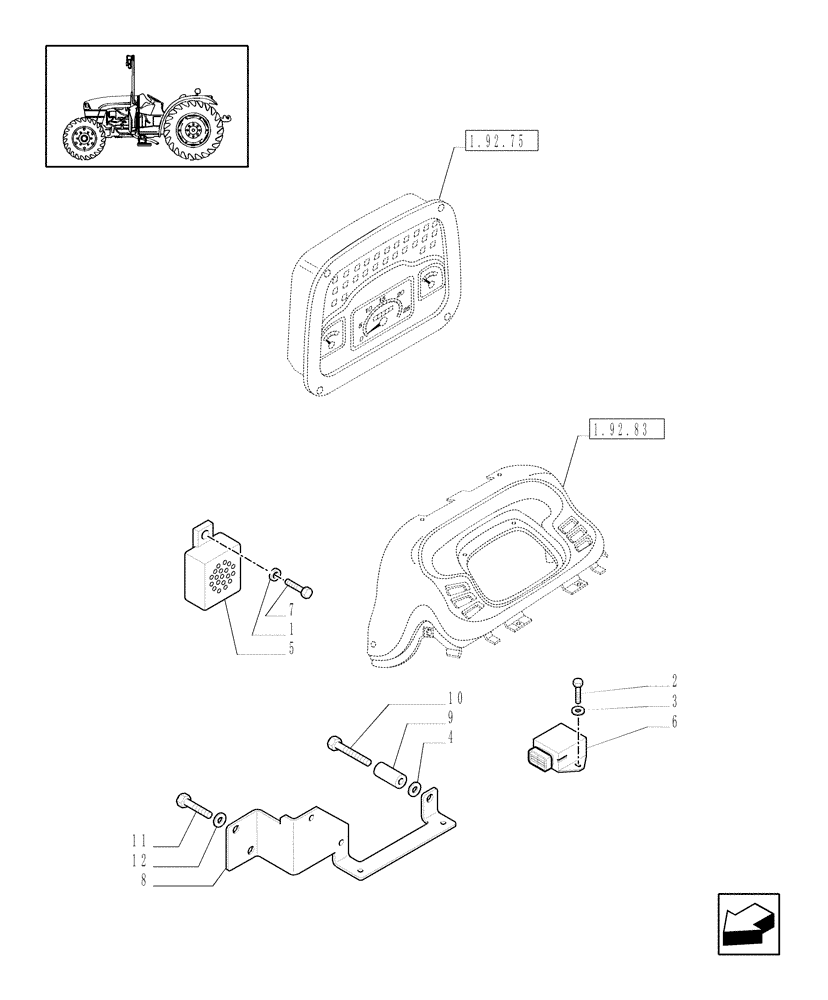

Запчасти Case IH JX1085C (1.92.75/03[01]) - (VAR.007) NA PACKAGE - MEASURING DEVICE (10) - OPERATORS PLATFORM/CAB

1

11188674

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1mm Thk

6x12

1шт.

2

13273924

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

1шт.

3

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

1шт.

4

14498804

WASHER,6.4mm ID x 16.3mm OD x 1mm Thk

3шт.

5

5188605

BUZZER,12V, 0.7A

1шт.

6

82038684

FLASHER UNIT

1шт.

7

13276014

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

1шт.

8

47134575

BRACKET

1шт.

9

47134580

SPACER

1шт.

10

10903721

BOLT,Hex, M6 x 55mm, Cl 8.8

1шт.

11

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.
