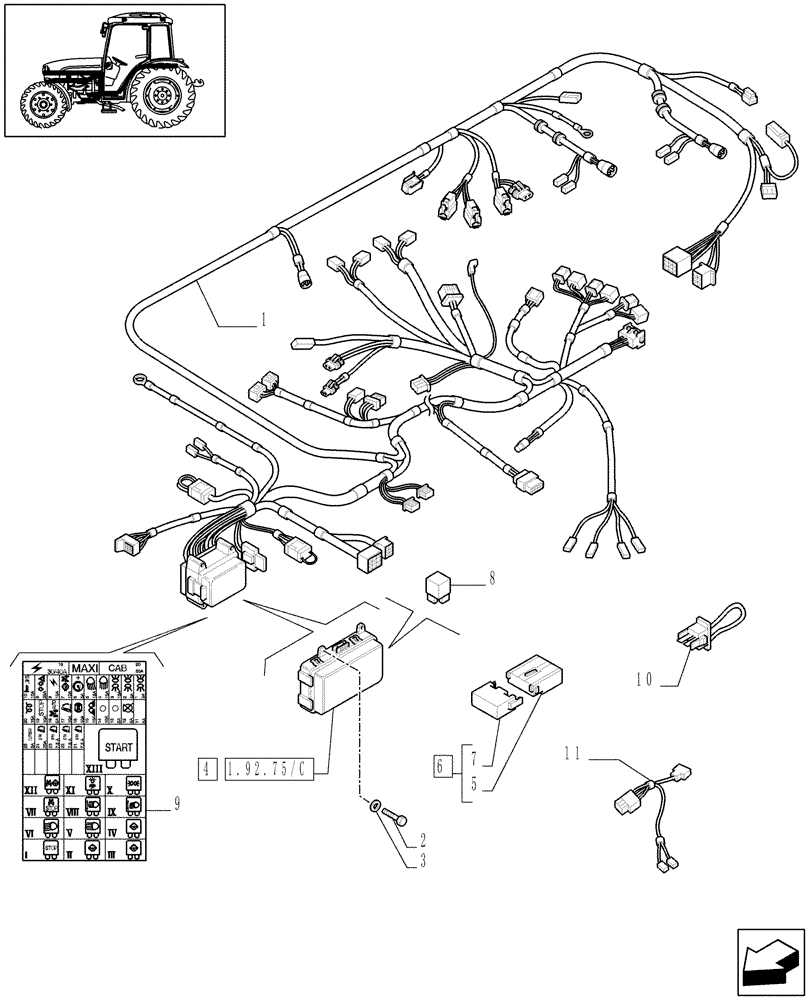

Запчасти Case IH JX1085C (1.92.75/01[02]) - (VAR.307) 4WD ELECTRO-HYDRAULIC COUPLING - AUXILIARY CABLES - W/CAB (10) - OPERATORS PLATFORM/CAB

1

47136775

ELECTRIC CABLE

1шт.

Main Harness

1шт.

2

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

4шт.

3

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

4

5198692

FUSE HOLDER

1шт.

5

5173266

FUSE HOLDER

1шт.

6

5176999

COVER

1шт.

7

5173265

COVER

1шт.

8

10395890

FUSE,5A, Mini, Beige

5A

8шт.

8

87522597

FUSE,10A, Mini, Red

10A

6шт.

8

87524877

FUSE,15A, Mini, Blue

15A

5шт.

8

10401290

FUSE,25 amp Mini

25A

1шт.

8

5173263

FUSE,50A, Maxi, Red

50A

1шт.

9

47129932

DECAL

Fuse

1шт.

10

5189713

JUMPER

C18

1шт.

10

47125756

JUMPER

C21

1шт.

11

5191652

ELECTRIC CABLE

1шт.

4WD Hydr. Warning Light extension

1шт.
