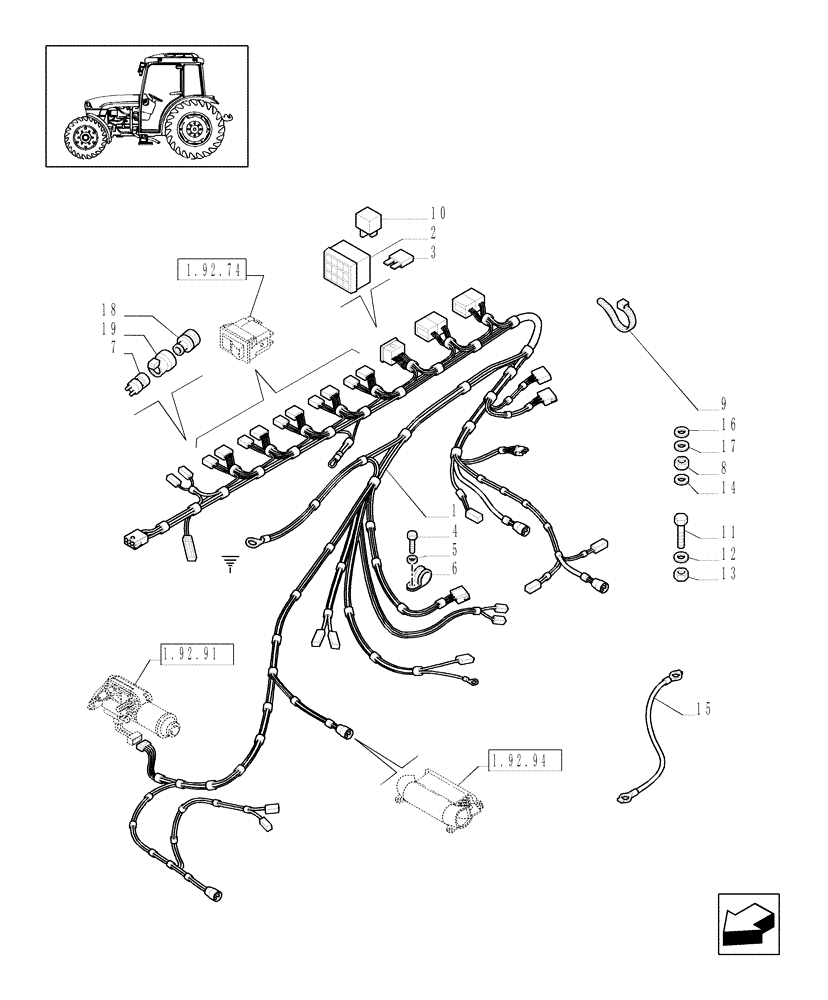

Запчасти Case IH JX1085C (1.92.75[05]) - ELECTRIC CONTROLS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

47126136

ELECTRIC CABLE

, Serial Range: -C5294

1шт.

Cab Users Harness

1шт.

1

87391526

ELECTRIC CABLE

, Start Serial: D5294

1шт.

Cab Users Harness

1шт.

2

5173313

FUSE BOX

Incl. 3

1шт.

3

87693742

FUSE,5A

1шт.

3

84090658

FUSE,Lt Blue, 15 Amp

3шт.

3

9811773

FUSE,10A, Micro, Red

1шт.

3

92277

FUSE,30 Amp

25A

1шт.

4

13279211

SCREW,Pozidriv Pan Hd, M8 x 16mm, Cl 5.8, Full Thd

4шт.

5

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

6

10450090

CLAMP,8mm, Coat, 9mm Bolt Hole, P Type

2шт.

7

5148131

HOUSING

1шт.

8

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

9

85805383

CABLE TIE

CABLE STRAP

28шт.

10

5155317

RELAY,12V, 30A

1шт.

11

13273921

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

3шт.

12

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

3шт.

13

15896414

NUT,M5, Cl 8

2шт.

14

10615774

WASHER

D=10

2шт.

15

87309787

ELECTRIC CABLE

Ground

1шт.

16

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.

17

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

D=6

1шт.

18

5148133

CIGARETTE LIGHTER

1шт.

19

5148132

LAMP SOCKET

1шт.
