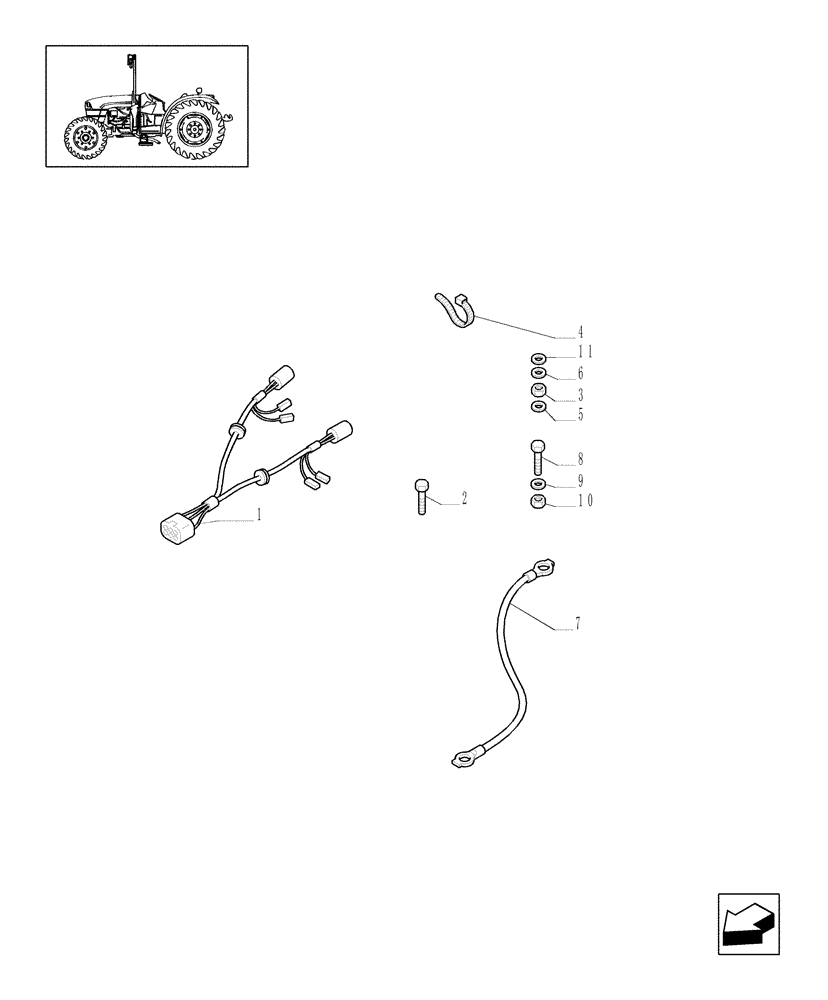

Запчасти Case IH JX1085C (1.92.75[04]) - ELECTRIC CONTROLS - L/CAB (10) - OPERATORS PLATFORM/CAB

1

5191654

ELECTRIC CABLE

RH/LH Rear Lamp Extension

1шт.

2

13279277

SCREW,Pozidriv Pan Hd, M8 x 16mm, Full Thd

4шт.

3

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

4

85805383

CABLE TIE

CABLE STRAP

24шт.

5

10615774

WASHER

D=10

2шт.

6

12647607

WASHER,6.15mm ID x 16mm OD x 2mm Thk

6x16

1шт.

7

87309787

ELECTRIC CABLE

Ground

1шт.

8

13273921

SCREW,Pozidriv Pan Hd, M5 x 10mm, Cl 8.8, Full Thd

3шт.

9

10571474

LOCK WASHER,5.10mm ID x 9.20mm OD x 1.20mm, C72, DAC

3шт.

10

15896414

NUT,M5, Cl 8

2шт.

11

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

1шт.
