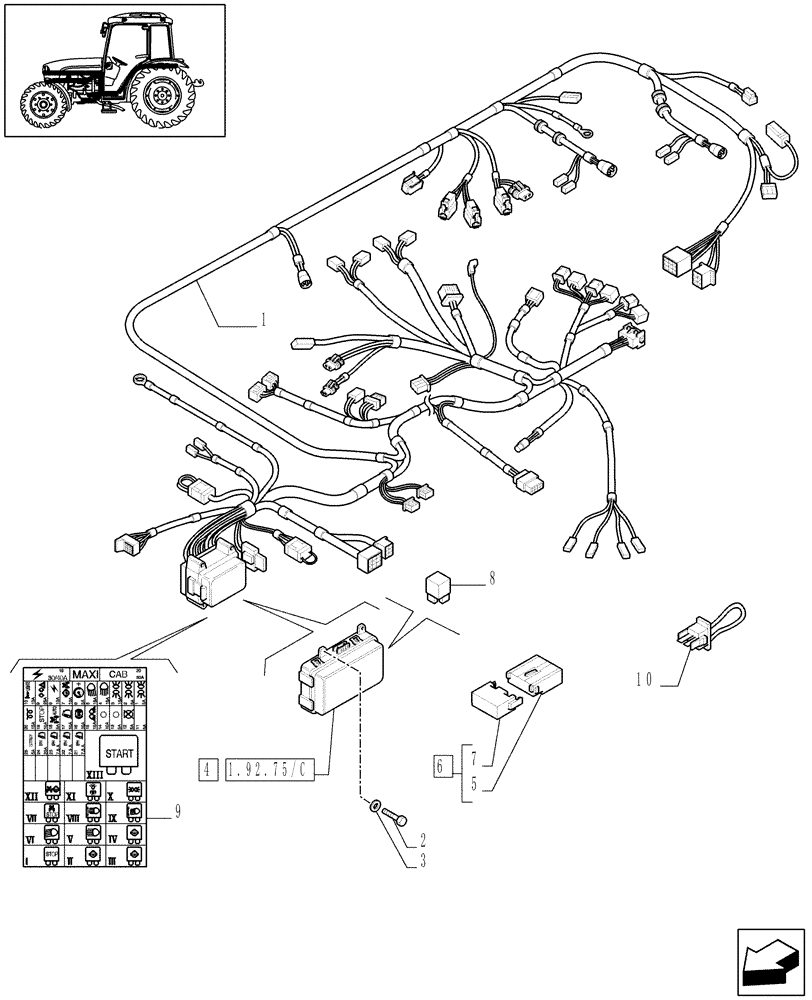

Запчасти Case IH JX1085C (1.92.75[03]) - ELECTRIC CONTROLS - W/CAB (10) - OPERATORS PLATFORM/CAB

1

47134751

ELECTRIC CABLE

Main, 4WD, JX1095C to HJH052980 C5366

1шт.

1

47134749

ELECTRIC CABLE

Main, 2WD, JX1085C, Serial Range: -HJH052980

1шт.

1

87339169

ELECTRIC CABLE

Main, 4WD, JX1095C, Serial Range: HJH052981-HJH076230

1шт.

1

87339168

ELECTRIC CABLE

Main, 2WD, JX1085C, Serial Range: HJH052981-HJH076230

1шт.

1

87528612

ELECTRIC CABLE

C21, Start Serial: HJH076231

1шт.

1

87528609

ELECTRIC CABLE

MAIN, 4 WD, JX1085 C, Start Serial: HJH076231

1шт.

2

86511829

SCREW,Phil Pan Hd, M6 x 16mm, Cl 4.8, Full Thd

4шт.

3

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

4

5198692

FUSE HOLDER

1шт.

5

5173266

FUSE HOLDER

1шт.

6

5176999

COVER

1шт.

7

5173265

COVER

1шт.

8

10395890

FUSE,5A, Mini, Beige

5A

1шт.

8

87522597

FUSE,10A, Mini, Red

10A

6шт.

8

87524877

FUSE,15A, Mini, Blue

15A

1шт.

8

10401290

FUSE,25 amp Mini

25A

1шт.

8

5173263

FUSE,50A, Maxi, Red

50A

1шт.

9

47129932

DECAL

1шт.

10

5189713

JUMPER

C18

1шт.

10

47125756

JUMPER

C21, Serial Range: -HJH076230

1шт.

10

87371844

ELECTRIC CABLE

C21, Start Serial: HJH076231

1шт.
