Запчасти Case IH JX1085C (1.92.63[03]) - POWER STEERING PIPES (10) - OPERATORS PLATFORM/CAB

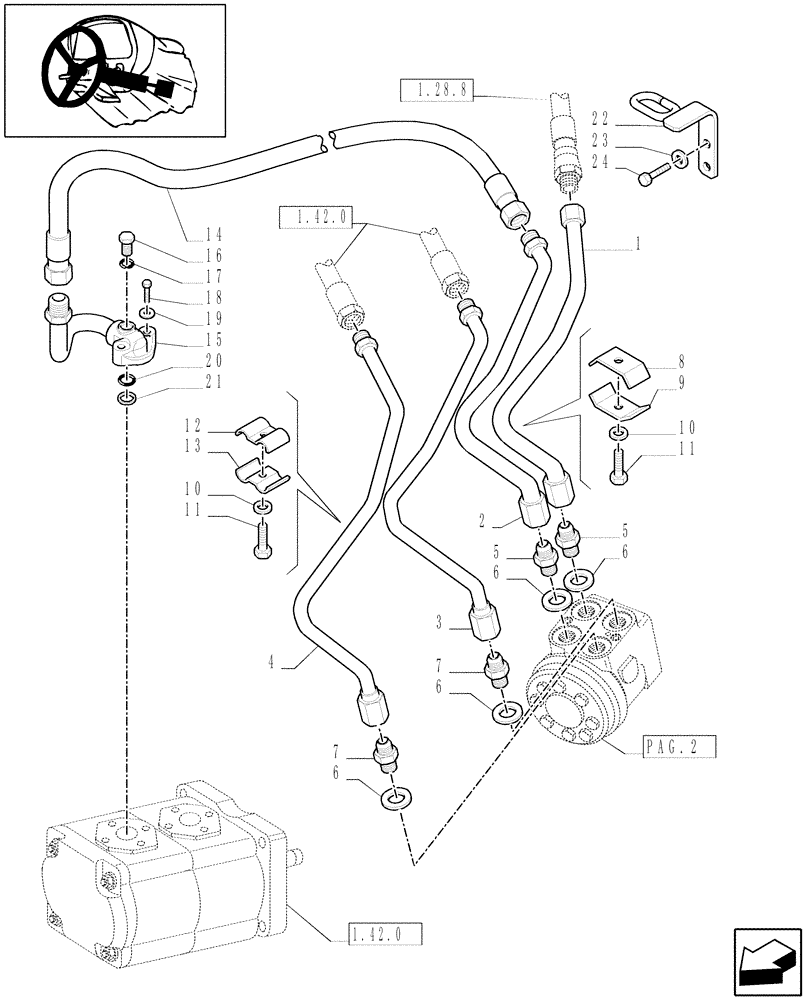

Схема запчастей Case IH JX1085C - (1.92.63[03]) - POWER STEERING PIPES (10) - OPERATORS PLATFORM/CAB
12
1
15
2
5
10
5
18
pag.2
6
24
11
3
17
13
10
11
14
20
6
16
1.28.8
23
8
7
22
1.42.0
4
7
6
6
1.42.0
21
19
9

Артикул

Название

Примечание

Количество

1

47135268

RIGID TUBE

In

1шт.

2

47135269

RIGID TUBE

Out

1шт.

3

47135271

RIGID TUBE

LH, Out

1шт.

4

47135270

RIGID TUBE

RH, Out

1шт.

5

5158807

HYD CONNECTOR

7/8"-14 x 1/2" Gas

2шт.

6

5170555

WASHER

1/2"

4шт.

7

5174421

HYD CONNECTOR

3/4"-16 x 1/2" Gas

2шт.

8

5193549

CLAMP,6mm ID x 25mm Thk x 32mm L

M6

1шт.

9

5193550

CLAMP,6.5mm ID

1шт.

10

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

2шт.

11

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

12

5180016

BRACKET

M6

1шт.

13

5180153

BRACKET

1шт.

14

87312411

HYDRAULIC HOSE

1шт.

15

47135555

RIGID TUBE

1шт.

16

10300511

PLUG,M12 x 1.5 x 12, Cl5.8

1шт.

17

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

M12

1шт.

18

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

2шт.

19

11197779

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

2шт.

20

5135739

O-RING,0.737" ID x 0.943" OD x 0.103"

1шт.

21

5146466

RING,24mm ID x 25mm OD x 2.3mm Thk

D=24

1шт.

22

87327456

BRACKET

1шт.

23

11193979

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

2шт.

24

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

Выбрано товаров: 24
