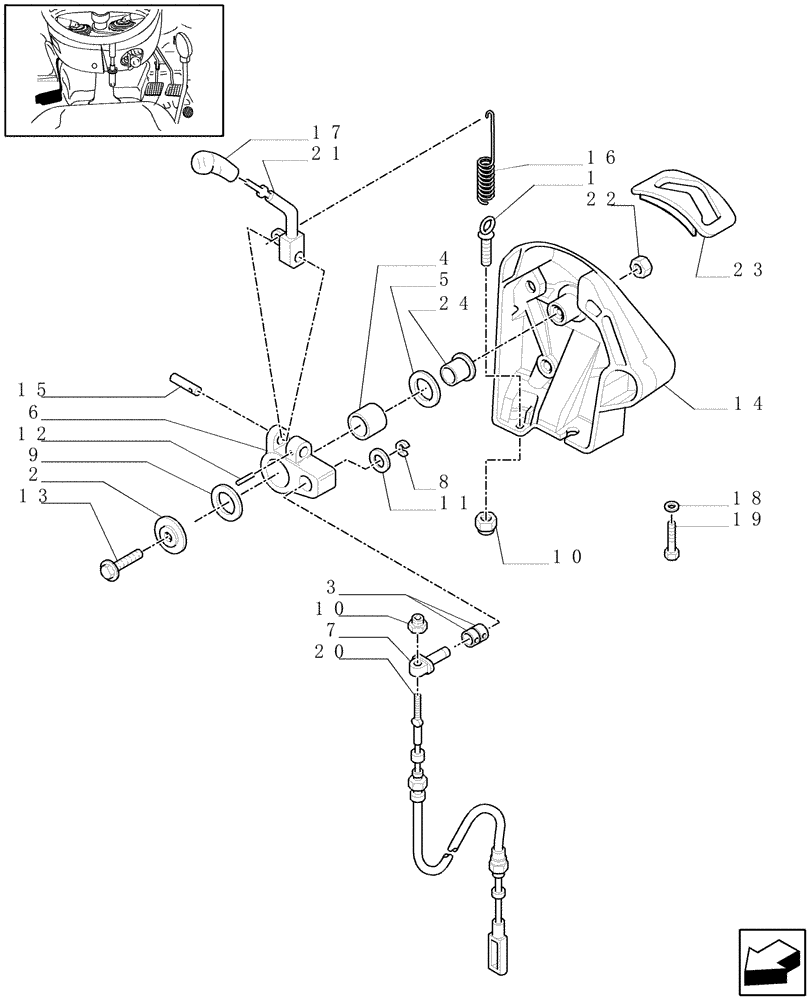

Запчасти Case IH JX1085C (1.92.26[03]) - PTO CONTROLS (10) - OPERATORS PLATFORM/CAB

1

5115351

HOOK,M6 x 1

1шт.

2

87528262

ANTI-WRAP PLATE,6mm ID x 34mm OD

1шт.

3

47743308

NYLON BEARING,Nylon, 8mm ID x 12mm OD x 13mm W

D=8

2шт.

4

5191013

ROLLER BEARING,Needle, 22mm ID x 28mm OD x 20mm W

1шт.

5

5191656

CUP WASHER,28mm ID x 34mm OD x 2mm Thk

1шт.

6

5191700

BUSHING,28mm ID x 36mm OD x 16mm L

1шт.

7

47131077

PIN,8mm

1шт.

8

11087871

CIRCLIP,M7

1шт.

9

87528222

WASHER,28mm ID x 34mm OD x 3mm Thk

1шт.

10

12574221

NUT,M6 x 1, Cl 10

1шт.

11

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

12

14159680

ROLL PIN

2.5 x 14

1шт.

13

15924904

SCREW,Hex Wshr Hd, M5.5 x 1.8 x 19mm

1шт.

14

87325898

SUPPORT

Incl. 24

1шт.

15

47123110

PIN,30mm x 6mm

1шт.

16

47123119

SPRING

1шт.

17

5194972

KNOB

1шт.

18

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

19

14306624

HEX SOC SCREW,M8 x 1.25 x 35mm, Cl 8.8, Full Thd

3шт.

20

47123120

CABLE

1шт.

21

5187788

SHIFTER FORK

1шт.

22

10725914

LOCK NUT,M6 x 1, Cl 04

2шт.

23

87325900

SECTOR

Toothed

1шт.

24

87325901

BUSHING,15.8mm ID x 22mm OD x 21mm L

1шт.
