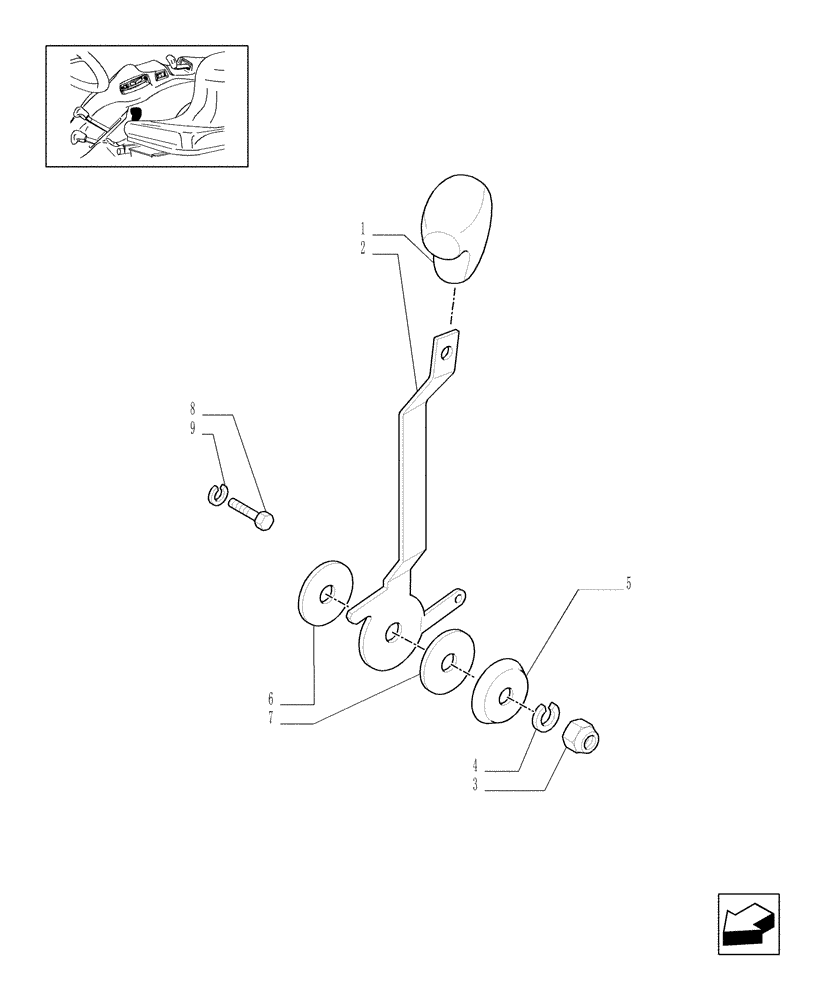

Запчасти Case IH JX1085C (1.92.11) - (VAR.124-125-157-159) 2 MID-MOUNT REMOTE VALVES WITH JOYSTICK - THROTTLE CONTROL LINKAGE (10) - OPERATORS PLATFORM/CAB

1

87587990

KNOB,Orange

Orange

1шт.

2

5194560

LEVER

, Serial Range: -HJE065795

1шт.

2

87378730

LEVER

, Start Serial: HJE065796

1шт.

3

15506225

LOCK NUT,M12 x 1.25

1шт.

4

12646924

WASHER,12.2mm ID x 28mm OD x 3mm Thk

1шт.

5

87347331

WASHER,12.83mm ID x 52.3mm OD x 0.89mm Thk

1шт.

6

5175509

FRICTION WASHER

12.5x54x2

1шт.

7

5175510

SPACER

12.5x54x3

1шт.

8

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

9

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.
