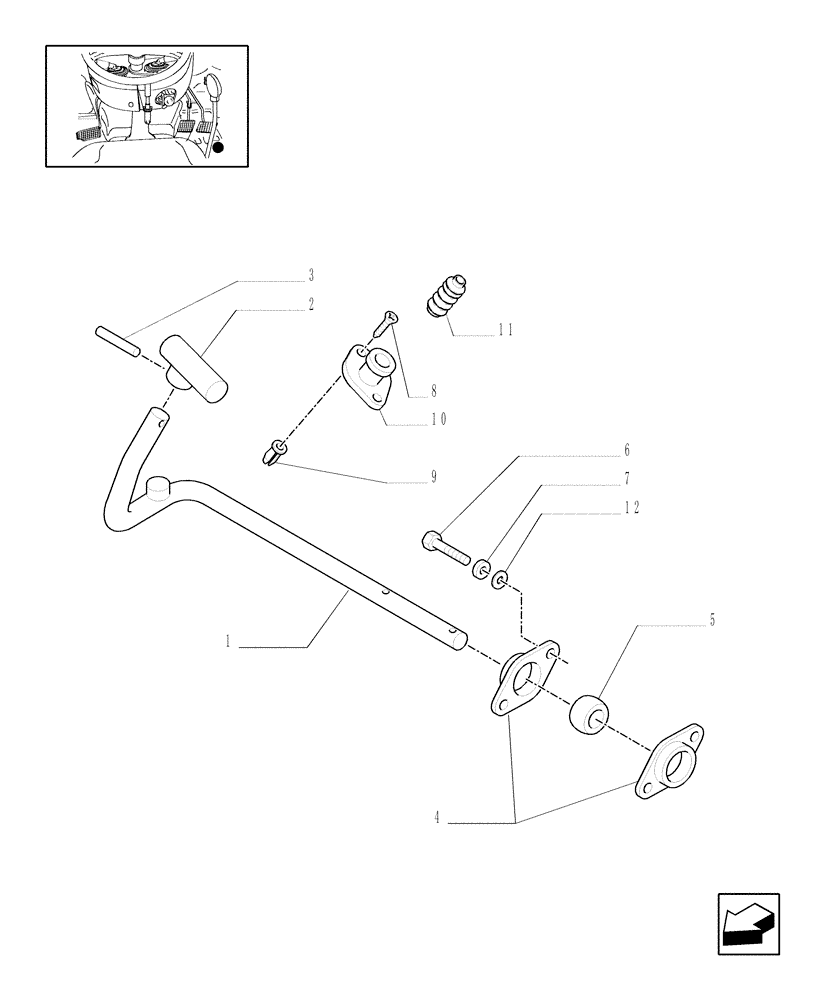

Запчасти Case IH JX1085C (1.92.10[01]) - THROTTLE CONTROL LINKAGE - L/CAB - C5481 (10) - OPERATORS PLATFORM/CAB

1

5192357

LEVER

1шт.

2

87325567

PEDAL

1шт.

3

13938070

ROLL PIN,M4 x 24mm OAL, Coiled

1шт.

4

5156494

FLANGE

2шт.

5

5176160

BUSHING

1шт.

6

10902224

SCREW,Hex, M6 x 16mm, Cl 8.8, Full Thd

2шт.

7

10516474

LOCK WASHER

D=6

2шт.

8

5182260

SELF-TAP SCREW,M5 x 16mm L

5x16 W/Cab

2шт.

9

14115781

GROMMET

W/Cab

2шт.

10

5181227

CIRCLIP

W/Cab

1шт.

11

5128714

BOOT

W/Cab

1шт.

12

11194371

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.4mm Thk

2шт.
