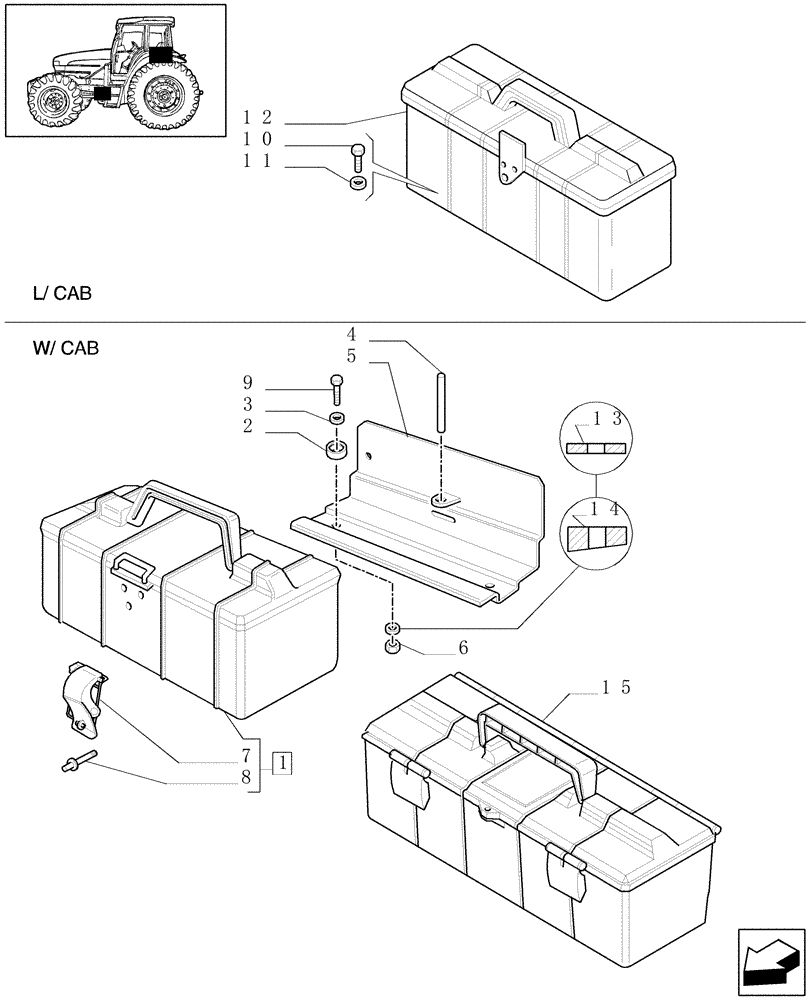

Запчасти Case IH JX1085C (1.90.5) - TOOL BOX (10) - OPERATORS PLATFORM/CAB

1

5135060

TOOL BOX

ASSY, W/Cab

1шт.

2

5185787

PAD

W/Cab

2шт.

3

12648421

WASHER

8x15, W/Cab

2шт.

4

5106675

PIN,6mm OD

W/Cab

1шт.

5

47130869

SUPPORT

W/Cab

1шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

w/Cab

2шт.

7

5135576

LATCH

W/Cab

1шт.

8

14641391

RIVET,Tr Hd, M3.2 x 8, Aluminum

W/Cab

3шт.

9

16043824

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd, DAC

w/Cab

2шт.

10

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

L/Cab

2шт.

11

12642001

WASHER,8.15mm ID x 25mm OD x 1.5mm Thk

L/Cab

2шт.

12

5180480

TOOL BOX

L/Cab

1шт.

13

5185296

SPACER,9mm ID x 30mm OD x 5mm L

W/Cab

1шт.

14

5185297

SPACER

W/Cab

1шт.

15

5095002

TOOL BOX

1шт.
