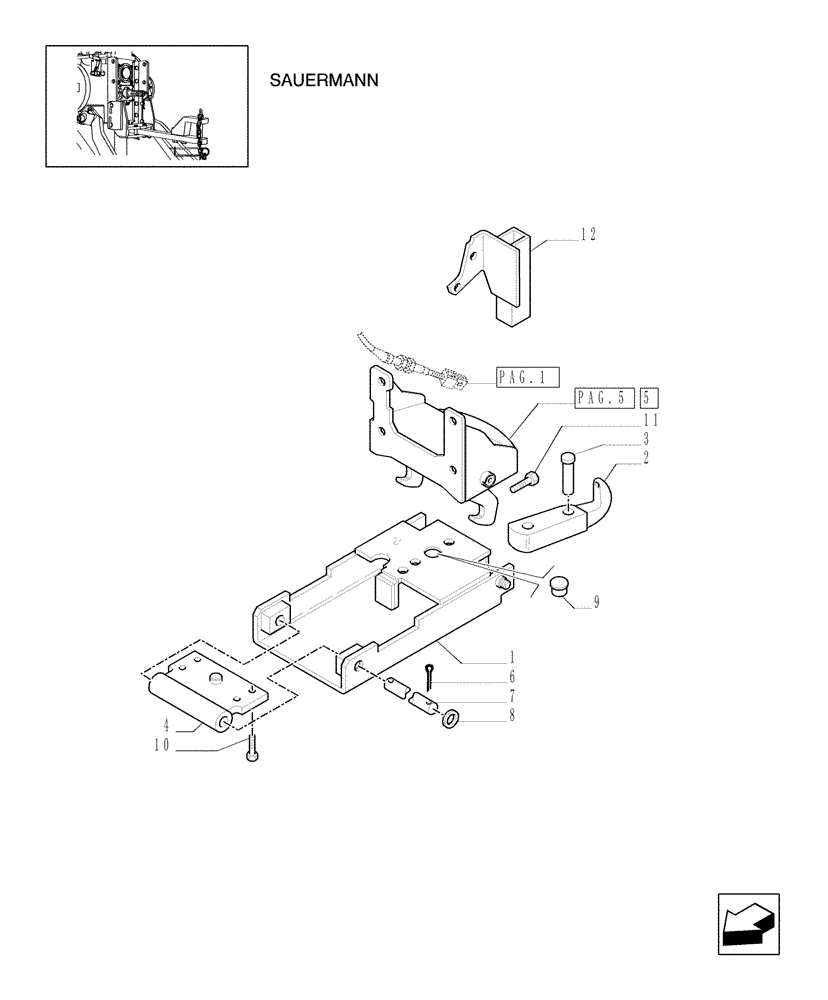

Запчасти Case IH JX1085C (1.89.3/13[03]) - (VAR.929-929/1) PICK UP HITCH AND DRAW BAR (SAUERMANN) - BRACKET, TIE-ROD AND SUPPORT (09) - IMPLEMENT LIFT

1

82018194

SUPPORT

2шт.

2

82018052

HOOK

2шт.

3

82018046

PIN,22.4mm OD x 101.5mm L

20x32

2шт.

4

82018196

PLATE

1шт.

5

82018189

SUPPORT

ASSY

1шт.

6

81868739

COTTER PIN

2шт.

7

82018252

PIN,28mm OD x 340mm L

1шт.

8

81863620

WASHER,29mm ID x 50mm OD x 4mm Thk

2шт.

9

82006638

GROMMET,35mm OD

1шт.

10

11391534

BOLT,Hex, M16 x 1.5 x 45, 10.9, Full Thd

4шт.

11

11376234

BOLT,Hex, M16 x 1.5 x 35, 10.9, Full Thd

4шт.

12

82018198

BRACKET

1шт.
