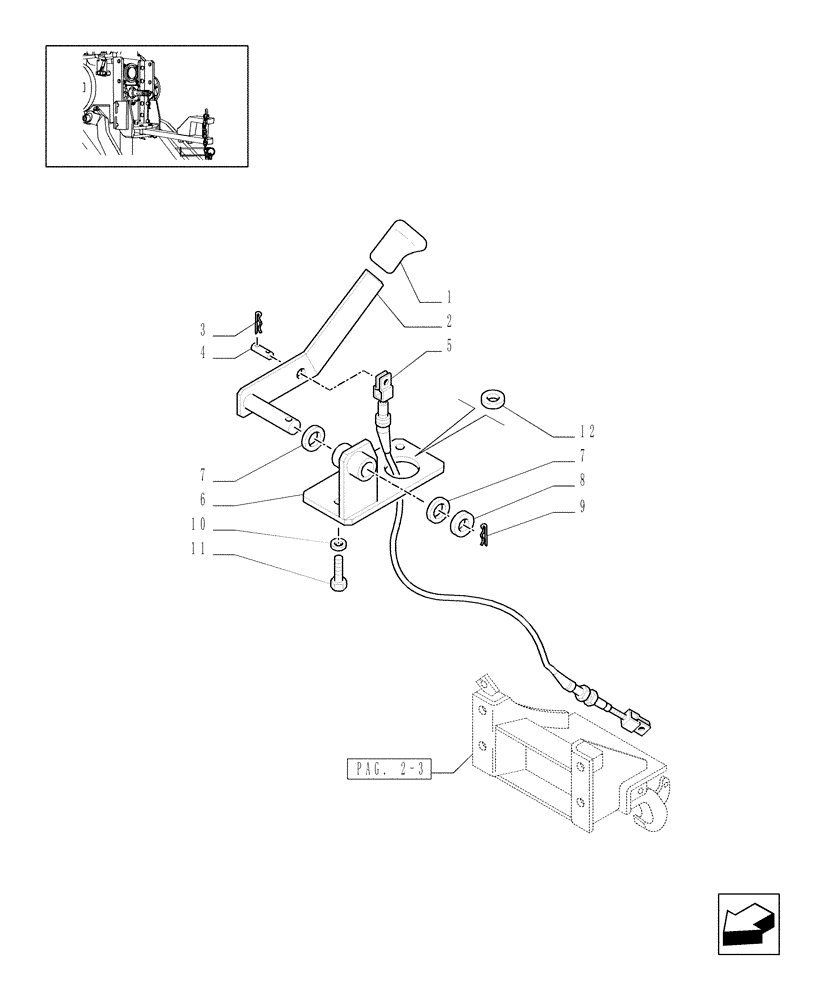

Запчасти Case IH JX1085C (1.89.3/13[01]) - (VAR.929-929/1) PICK UP HITCH AND DRAW BAR - LEVER AND BRACKET (09) - IMPLEMENT LIFT

1

5178867

KNOB

Black

1шт.

2

47136397

LEVER

1шт.

3

83957394

PIN,0.072" x 0.82"

1шт.

4

81868749

PIN,7.9mm OD x 15.08mm L

15/16"x19/32"

1шт.

5

5181515

CABLE

ASSY

1шт.

6

5179465

BRACKET

1шт.

7

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

2шт.

8

83909861

WASHER,13.72mm ID x 26.92mm OD x 2.41mm Thk

G8

1шт.

9

83415765

COTTER PIN,1/8" x 3/4"

M6 x 50

1шт.

10

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

D=6

3шт.

11

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

3шт.

12

9635806

CIRCLIP,Ext., 0.392" Dia

1шт.
