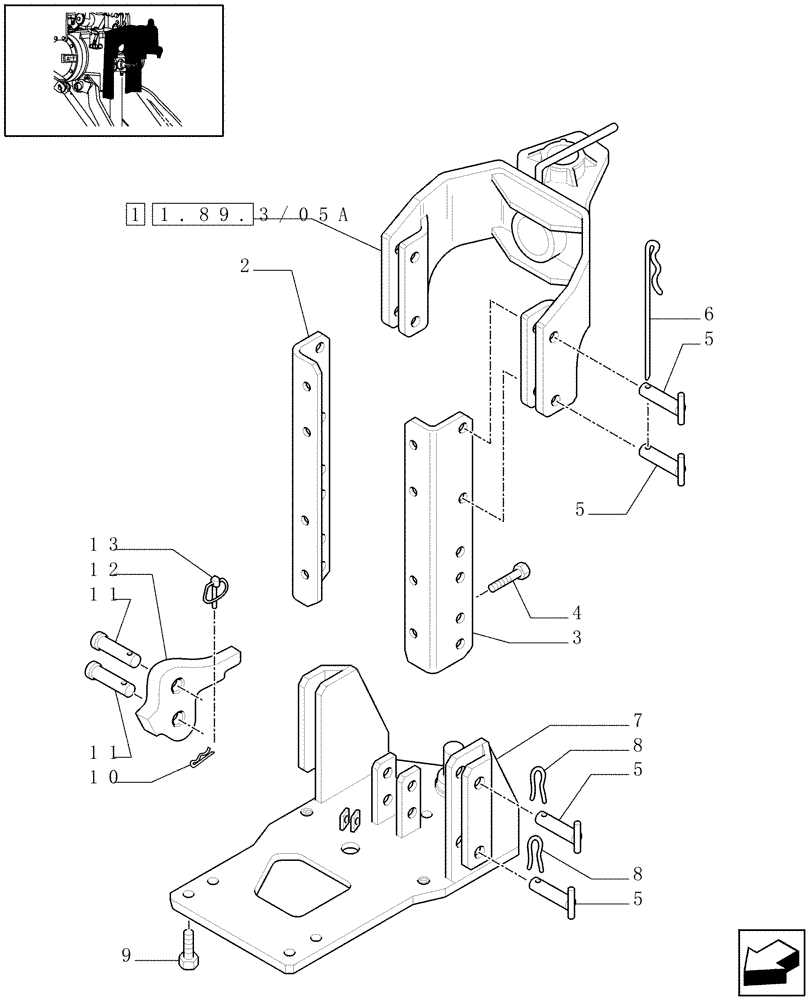

Запчасти Case IH JX1085C (1.89.3/05[01A]) - (VAR.893) SWIVEL HOOK, VERTICAL ADJUST, W/PIN (PITON) - D5824 (09) - IMPLEMENT LIFT

1

87576980

TOW HOOK

ASSY

1шт.

2

5177114

BRACKET

RH

1шт.

3

5177113

BRACKET

LH

1шт.

4

11390534

BOLT,Hex, M16 x 1.5 x 40mm, Cl 10.9

8шт.

5

5173020

PIN,22mm OD x 58mm L

8шт.

6

5173021

COTTER PIN,8.75mm x 241mm L

2шт.

7

5180712

TOW HOOK

1шт.

8

5112606

COTTER PIN,2.5mm OD x 66.5mm L

4шт.

9

11391524

SCREW,Hex, M16 x 1.5 x 45mm, Cl 8.8, Full Thd

4шт.

10

10798401

COTTER PIN,6.60mm Dia x 40.00mm, ZND

1шт.

11

5180806

PIN,20mm OD x 85mm L

2шт.

12

5180801

LEVER

1шт.

13

44903774

LOCK PIN,4.8mm OD x 40mm L

1шт.
