Запчасти Case IH JX1085C (1.89.3/01[02]) - (VAR.216) SWIVEL HOOK FOR EEC, VERTICAL ADJUST SLIDING (GERMANY) - LEVER AND BRACKET W/CAB (09) - IMPLEMENT LIFT

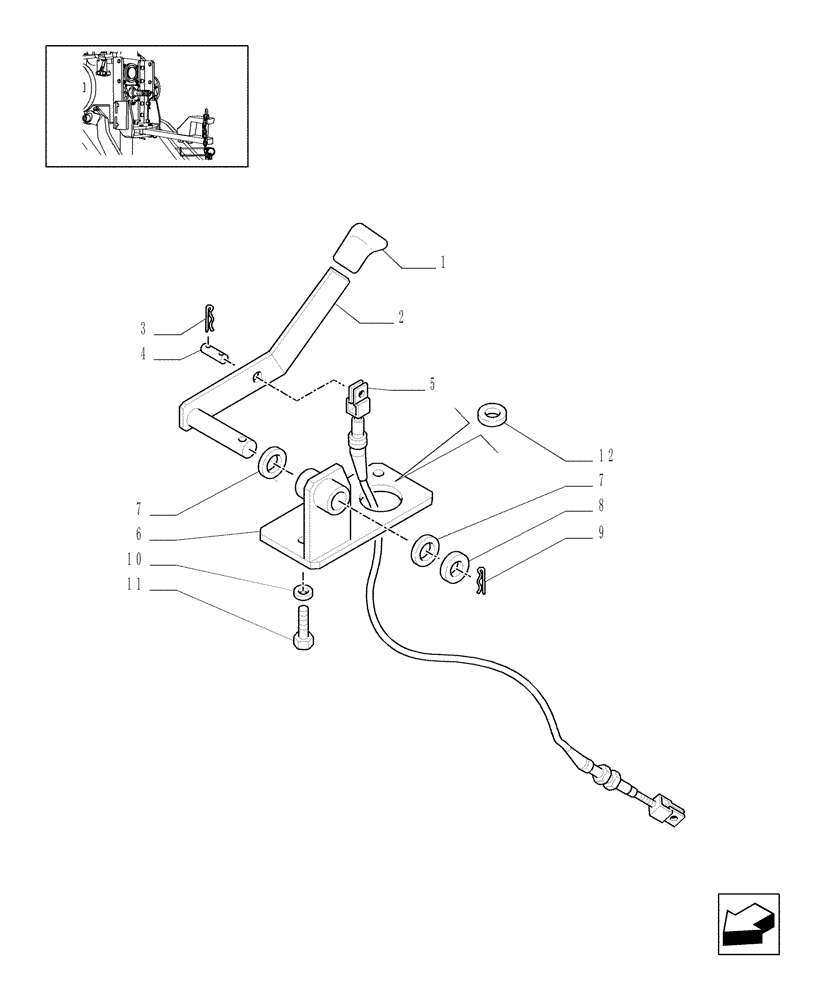

Схема запчастей Case IH JX1085C - (1.89.3/01[02]) - (VAR.216) SWIVEL HOOK FOR EEC, VERTICAL ADJUST SLIDING (GERMANY) - LEVER AND BRACKET W/CAB (09) - IMPLEMENT LIFT
3
7
2
10
7
11
6
4
12
5
8
1
9

Артикул

Название

Примечание

Количество

1

5178867

KNOB

Black

1шт.

2

47136397

LEVER

1шт.

3

83957394

PIN,0.072" x 0.82"

2шт.

4

81868749

PIN,7.9mm OD x 15.08mm L

15/16" x 19/32"

2шт.

5

47129846

CABLE

1шт.

6

5179465

BRACKET

1шт.

7

83904673

BUSHING,12.73mm ID x 14mm OD x 12.2mm L

2шт.

8

83909861

WASHER,13.72mm ID x 26.92mm OD x 2.41mm Thk

G8

1шт.

9

83415765

COTTER PIN,1/8" x 3/4"

1шт.

10

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

11

16043124

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

3шт.

12

81822628

CIRCLIP,1/2"

#50, .392" Dia, E-Type

1шт.

Выбрано товаров: 12
