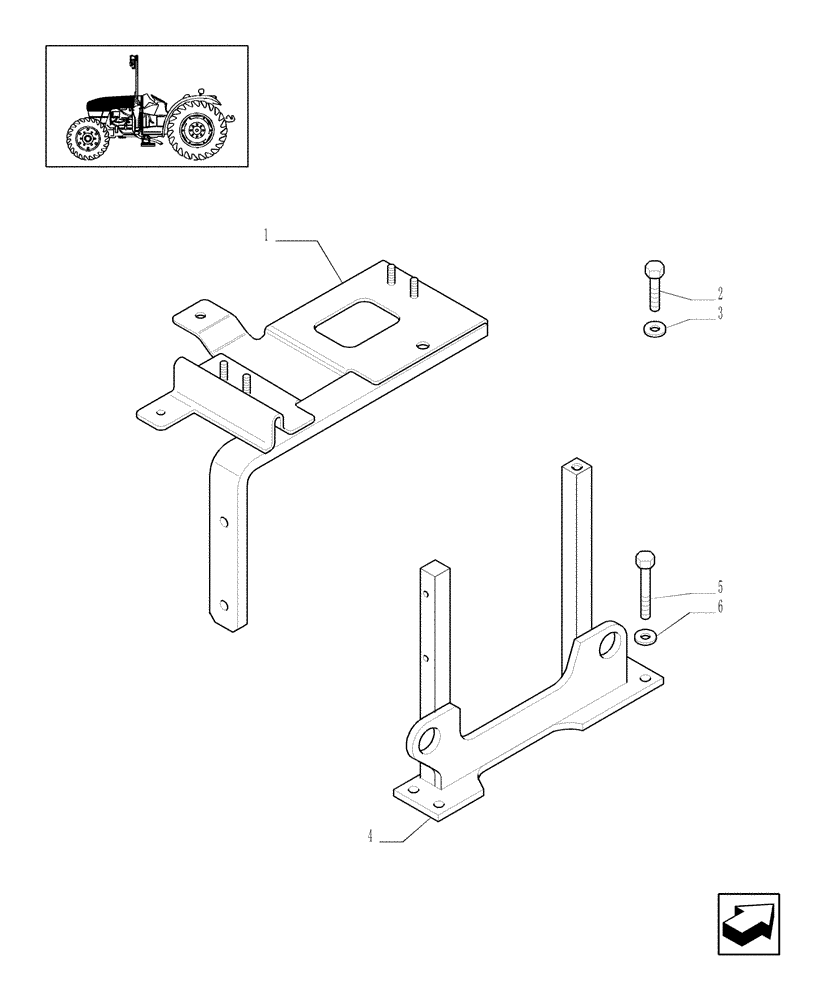

Запчасти Case IH JX1085C (1.83.0[07]) - HOODS (08) - SHEET METAL

1

87306197

SUPPORT

1шт.

2

16043674

BOLT,Hex, M8 x 1.25 x 25mm, Cl 12.9, Full Thd

3шт.

3

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

3шт.

4

87306181

SUPPORT

1шт.

5

15970724

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

6

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.
