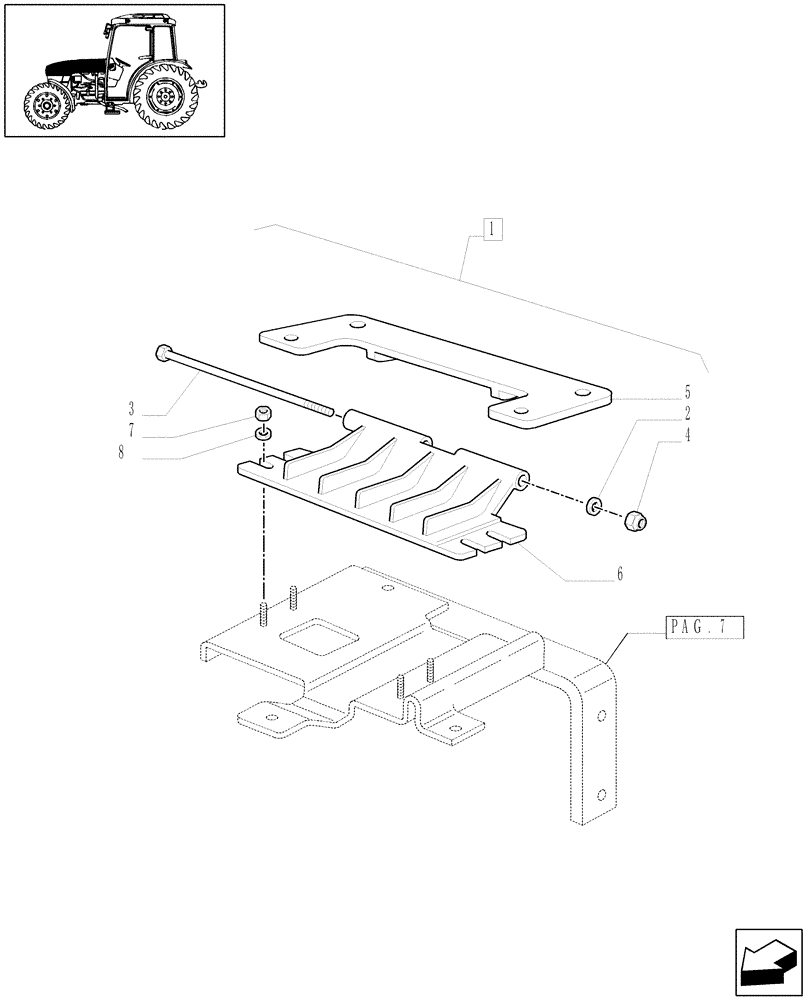

Запчасти Case IH JX1085C (1.83.0[04]) - HOODS - C5222 (08) - SHEET METAL

1

47128421

HINGE

ASSY, Incl. 2-6

1шт.

2

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

3

16046534

BOLT,Hex, M8 x 1.25 x 170mm, Cl 10.9

1шт.

4

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

1шт.

5

47128422

HINGE

1шт.

6

47128423

SUPPORTING ARM

1шт.

7

12574215

NUT,M6 x 1, Cl 8

4шт.

8

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

4шт.
