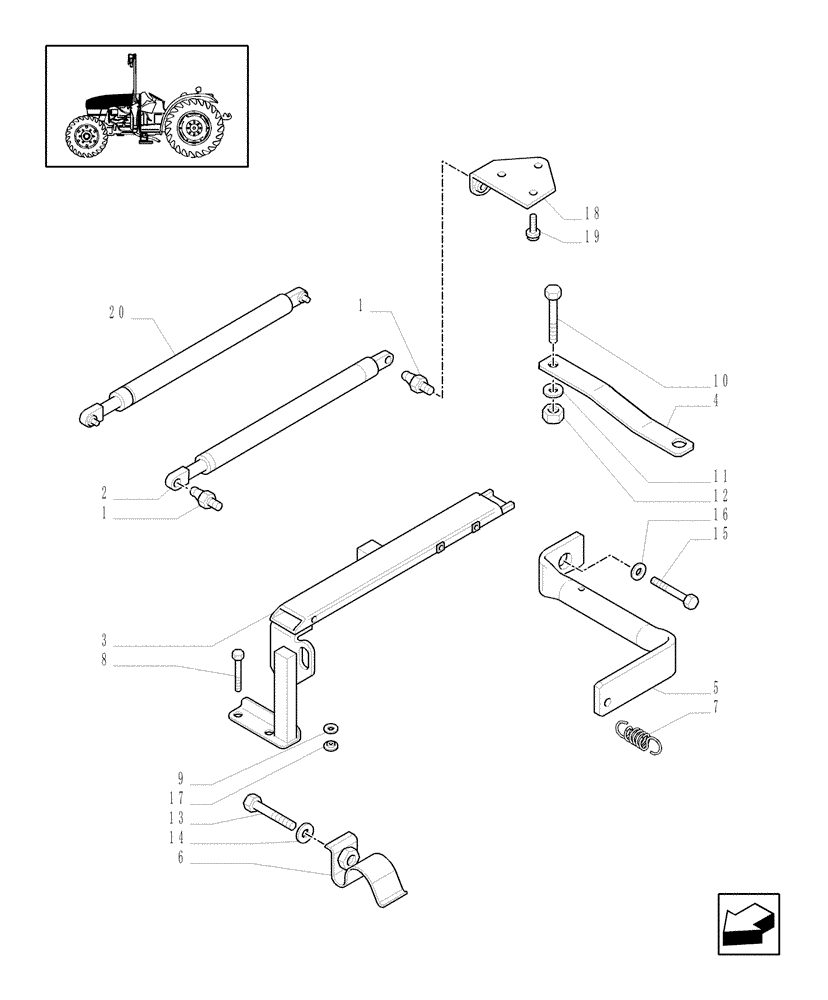

Запчасти Case IH JX1085C (1.83.0[03]) - HOODS (08) - SHEET METAL

1

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

2шт.

2

47133939

SHOCK ABSORBER

, Serial Range: -HJH073008

1шт.

3

87304917

SUPPORT

1шт.

4

87304914

BRACKET

1шт.

5

87313489

BRACKET

1шт.

6

87316797

BRACKET

1шт.

7

47131736

SPRING

2шт.

8

14360121

HEX SOC SCREW,M10 x 1.25 x 22mm, Cl 8.8, Full Thd

2шт.

8

16043674

BOLT,Hex, M8 x 1.25 x 25mm, Cl 12.9, Full Thd

1шт.

9

11182574

BELLEVILLE WASHER,Belleville, M8.4

2шт.

9

11193974

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 1.5mm Thk

1шт.

9

12628921

WASHER,8.15mm ID x 25mm OD x 4mm Thk

1шт.

10

16044424

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.

11

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.

11

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

1шт.

12

15503611

NUT,M8 x 1.25

1шт.

13

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

1шт.

14

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

1шт.

15

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

1шт.

16

13550314

WASHER

8x18x2

1шт.

17

87307069

BUSHING

1шт.

18

47130477

SUPPORT

1шт.

19

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

M8x14

3шт.

20

47128845

SHOCK ABSORBER

, Start Serial: HJH073009

1шт.
