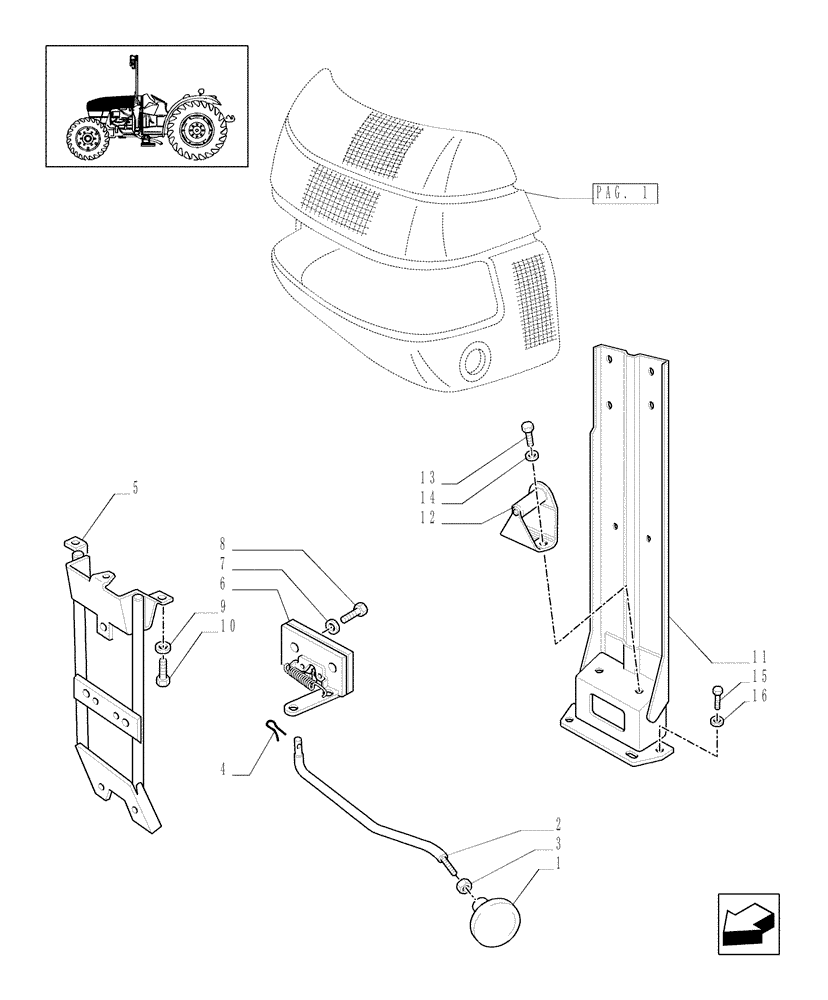

Запчасти Case IH JX1085C (1.83.0[02]) - HOODS (08) - SHEET METAL

1

47056191

PUSH BUTTON

1шт.

2

47131846

ROD

1шт.

3

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

4

10734101

COTTER PIN,M1.6 x 12

1шт.

5

47131827

SUPPORT

1шт.

6

47056830

LOCK

1шт.

7

11194674

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1mm Thk

2шт.

8

10902624

SCREW,Hex, M6 x 25mm, Cl 8.8, Full Thd

2шт.

9

12644404

WASHER,6.15mm ID x 15mm OD x 1mm Thk

3шт.

10

16297624

FLANGE BOLT,Hvy Hex, M6 x 10mm, Cl 8.8, Full Thd

6x10

3шт.

11

47134863

SUPPORT

1шт.

12

47127352

STRIKER PLATE

1шт.

13

14305221

HEX SOC SCREW,M6 x 16mm, Full Thd, Cl 8.8

2шт.

14

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

2шт.

15

16043524

SCREW,Hex, M8 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

16

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.
